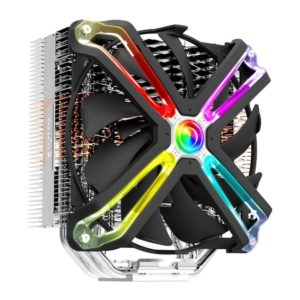

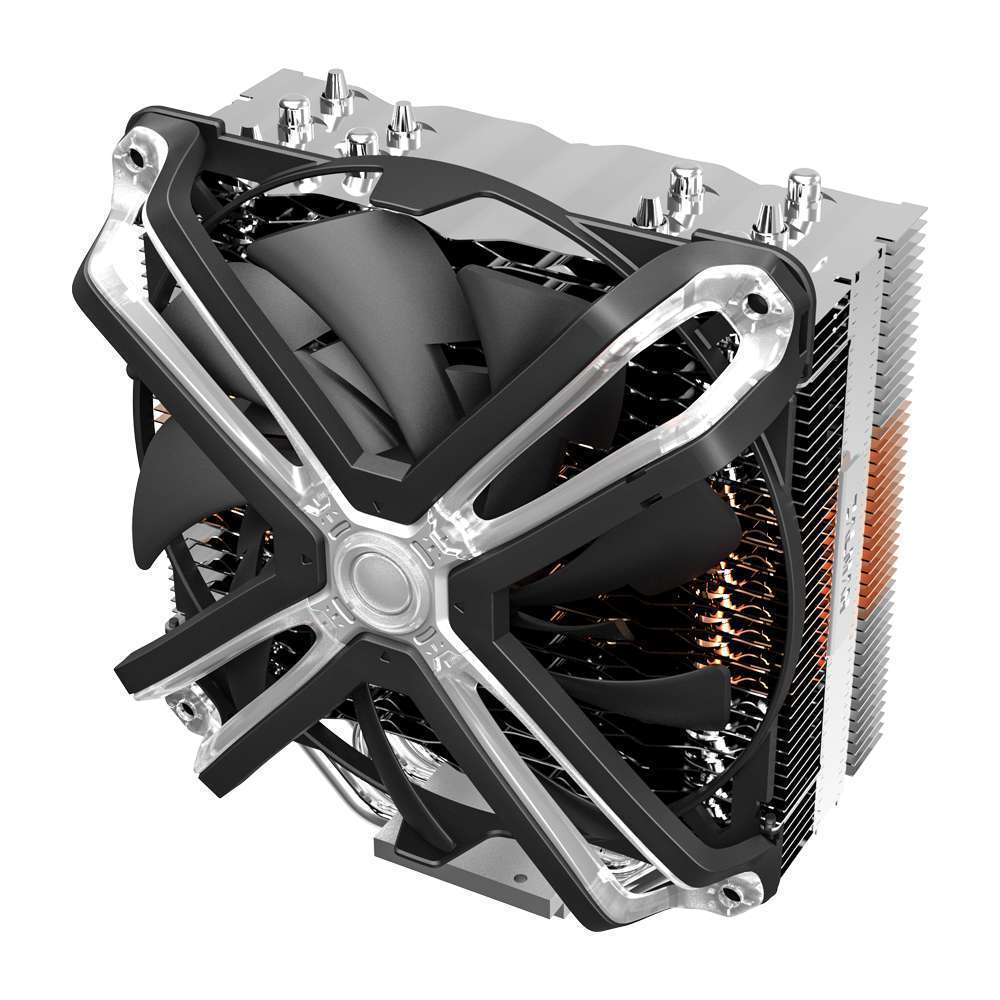

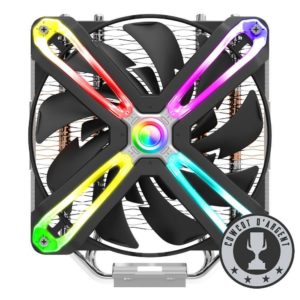

Zalman CNPS17X CPU Cooler with 4D Patented Corrugated Fin Design for Intel & AMD, RGB SYNC, 140mm

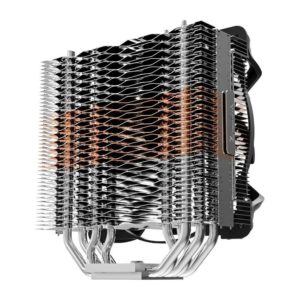

  • High Performance Cooler: Patented 4D Stereoscopic Corrugated cooling fins increase heat dissipation area by 15%. The heatsink is composed of 180 individual airflow passages that quickly move hot air outward.
  • ARGB 140mm Fan: Large 140mm addressable RGB fan move large amount of cool air into the CPU and rapidly move hot air out. The fan has a unique dual-bladed spider design that maximizes airflow performance. Supports motherboard addressable RGB sync (3-Pin, 5V)
  • Built for Advanced Cooling: Reverse DTH Technology (RDTH) is combined with an Interactive Heatpipe Transfer Design (IHD) for extreme efficiency in the heat transfer from the CPU to heatsink, resulting in extraordinary cooling performance
  • Dimension: 140mm(L) x 100mm(W) x 165mm(H)/ Weight: 700g / Heat Pipes: 6 / TDP: 200W / Material: Copper, Aluminum / Fan Speed: 800-1500 RPM / Air Flow: 61 CFM / Max Noise Level: 29.0 dBA / Voltage: 12V Fan, 5V LED / Connector: 4-Pin PWM, 3-Pin Addressable RGB
  • Compatibility: Intel LGA 2066 /2011-V3 /2011 /1200 /115X, AMD AM4/ AM3+/ AM3

Out of stock


Out of stock

SKU: 8809213769658 Categories: ,

Product Information

Model CNPS17X
Dimensions 140(L) x 100(W) x 160(H)mm
Materials Pure Copper, Pure Aluminum
Weight 700g
Heat Dissipation Area 6,243㎤
Heat Pipe 5
TDP 6,243㎤
Fan Dimensions 140 x 140 x 26(H)mm
Fan Bearing Type FDB(Fluid Dynamic Bearing)
Fan Speed 800~1,500 RPM ±10%
Max. Fan Noise Level 29.0 dB(A) ±10%
Max. Fan Air Flow 61CFM
Max. Fan Air Pressure 1.1mm H₂O
Fan Life Span 100,000 hours
Fan Connector Type Fan : 4-Pin PWM
LED : 3-Pin Addressable
Fan Control Method PWM Control
Rated Voltage Fan : 12V
LED : 5V
Rated Current Fan : 0.28A
LED : 0.3A
Power Consumption Fan : 3.36W
LED : 1.5W
Socket Compatibility Intel : LGA 1700 / 2066 / 2011-V3 / 2011 / 1200 / 115X CPUs
AMD : AM4 / AM3+ / AM3 CPUs
