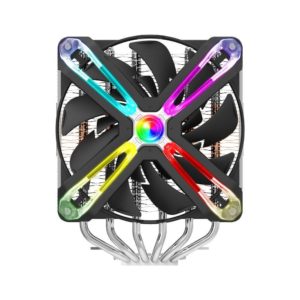

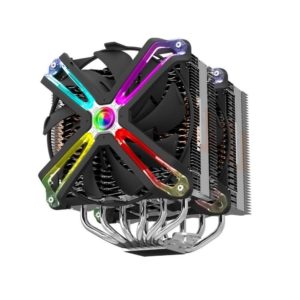

Zalman CNPS20X CPU Cooler with 4D Patented Corrugated Fin Design

ZALMAN

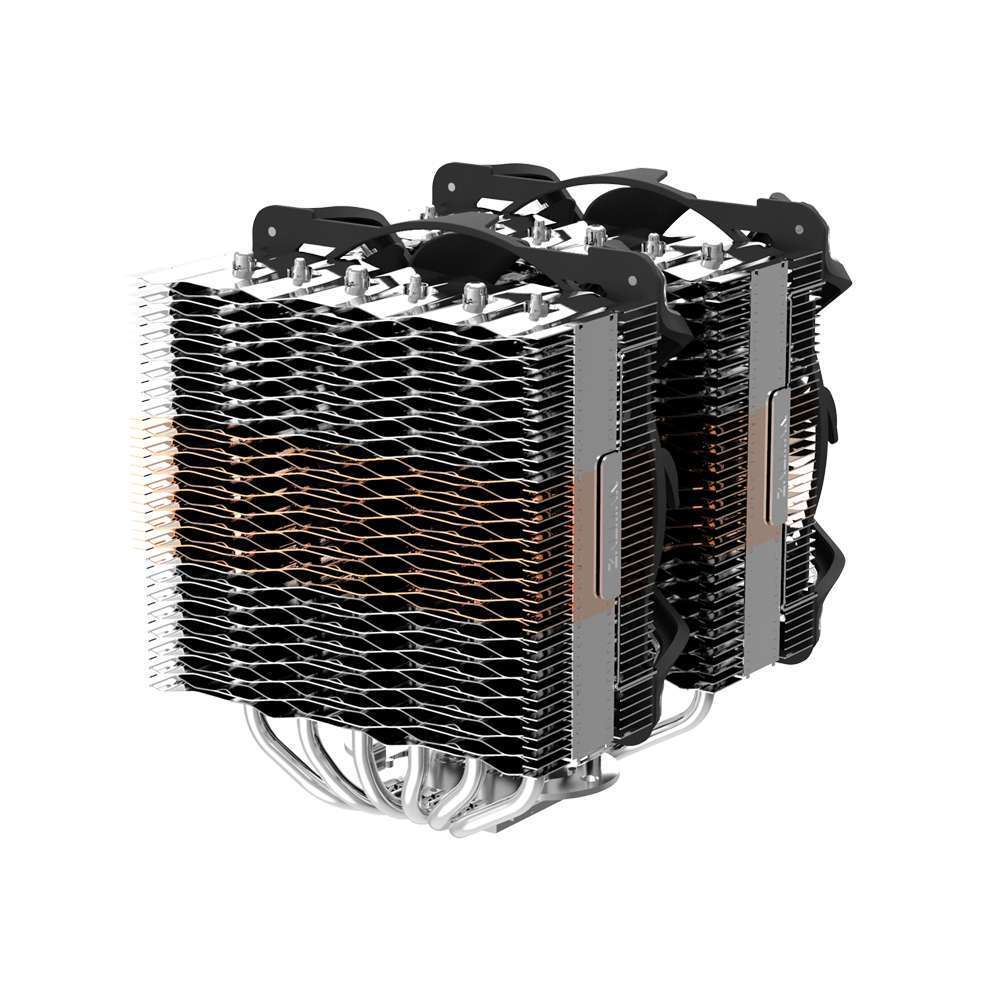

  • Proven Extreme Performance: The CNPS20X is a multiple award-winning cooler with Patented 4D Corrugated Fin technology that features 350 air passages that direct hot air away from the CPU and improves the heat dissipation area by 15%
  • ARGB 140mm Fans: Two large 140mm addressable RGB fans move large amount of cool air into the CPU and rapidly move hot air out. The fans have a unique dual-bladed spider design that maximizes airflow performance. Supports motherboard addressable RGB sync 3-Pin, 5V
  • Built for Advanced Cooling: Reverse DTH Technology RDTH is combined with an Interactive Heatpipe Transfer Design IHD for extreme efficiency in the heat transfer from the CPU to heatsink, resulting in extraordinary cooling performance
  • Dimension: 140mm x 170mm x 165mmH/ Weight: 1300g / Heat Pipes: 6 / TDP: 300W / Fan Speed: 800-1500 RPM / Air Flow: 61 CFM / Max Noise Level: 29.0 dBA / Voltage: 12V Fan, 5V LED / Connector: 4-Pin PWM, 3-Pin Addressable RGB
  • Compatibility: Intel LGA 2066 /2011-V3 /2011 /1200 /115X, AMD AM4/ AM3+/ AM3
  • Compatible devices: desktop

 15,500

SKU: 8809213769641 Categories: ,

Product Information

Model CNPS20X
Dimensions 140 x 170 x 165(H)mm
Materials Pure Copper, Pure Aluminum
Weight 1,300g
Heat Dissipation Area 15,242㎤
Heat Pipe 6
TDP 300W
Fan Dimensions 140 x 140 x 26(H)mm
Fan Bearing Type FDB (Fluid Dynamic Bearing)
Fan Speed 800~1,500 RPM ± 10%
Max. Fan Noise Level 29.0 dB(A) ± 10%
Max. Fan Air Flow 61CFM
Max. Fan Air Pressure 1.1mm H₂O
Fan Life Span 100,000 hours
Fan Connector Type Fan : 4-Pin PWM
LED : 3-Pin Addressable
Fan Control Method PWM Control
Rated Voltage Fan : 12V
LED : 5V
Rated Current Fan : 0.28A
LED : 0.3A
Power Consumption Fan : 3.36 W
LED : 1.5 W
Socket Compatibility Intel : LGA 1700 / 2066 / 2011-V3 / 2011 / 1200 / 115X CPUs / LGA1200
AMD : AM4 / AM3+ / AM3 CPUs
