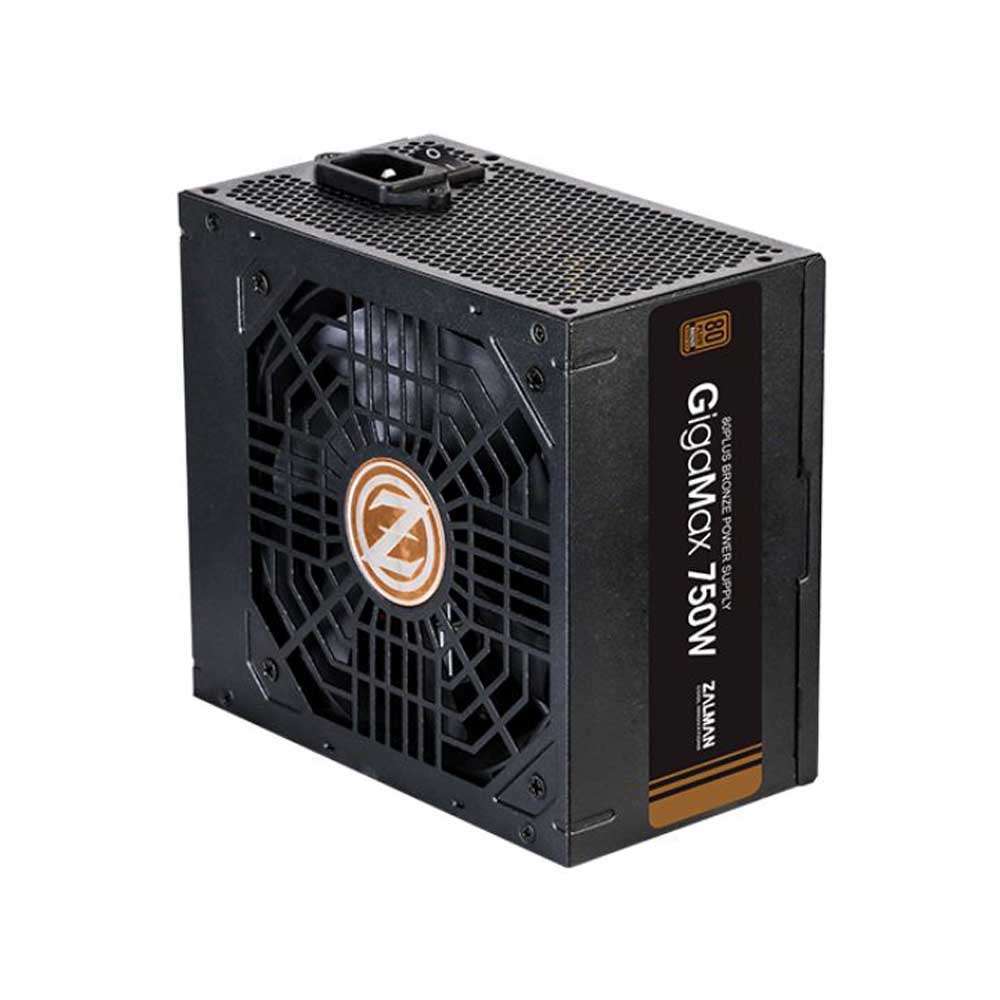

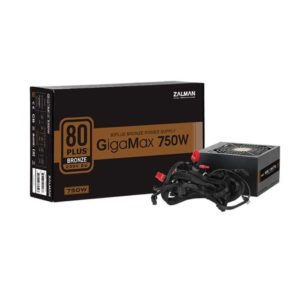

Zalman Gigamax 750W Modular 80+ Bronze Power Supply

ZALMAN
  • Full Modular PSU
  • Integrated advanced design method of Sense 6-pin to reduce voltage fluctuation to within 3%
  • All cables are flat, easy cable management
  • Up to 92% energy conversion efficiency
  • Active PFC with 99.9% Maximum Power Factor
  • Aluminium high Performance Solid Japanese Capacitor that Handles up to 221˚F
  • Built-in EMI Filter for Noise Reduction
  • 12V DC-to-DC Convertor with 99.43 Availability
  • Multiple Protection Circuit System
  • Highly Energy-Efficient Standby Power Supply, 0.5W (ErP Lot 6 Certified)

 14,500

SKU: 8809213769610 Categories: ,

Product Information

Model GigaMax[750W] ZM750-GVII
80PLUS BRONZE Power Supply
Efficiency Max 88% @230VAC , Typical load
Dimensions 150(L) x 140(W) x 86(H)mm
MTBF 50,000 Hours
Weight 2.09kg
Operating Temperature 0~40℃
PFC Active PFC
Regulatory CB, CE, KC, EAC, RoHS
Type Intel ATX 12V V2.31
Protection OCP/ OVP/ OPP/ OTP/ UVP/ SCP
Input Voltage 200-240VAC
Input Current 6A
Input Frequency 50-60Hz
Fan Size 120mm
Fan Bearing FDB Bearing
Cables (Connector) Motherboard Cable x 1
PCI Express Cable (Connector 4ea) x 2
IDE (Connector 2ea) + FDD (Connector 1ea) Cable x 1
S-ATA Cable x 1
S-ATA / IDE Cable x 1
CPU Cable x 1
80 PLUS BRONZE
