| Brand |
Asus |
| Model |

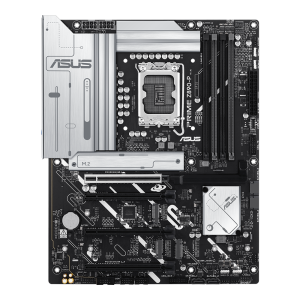

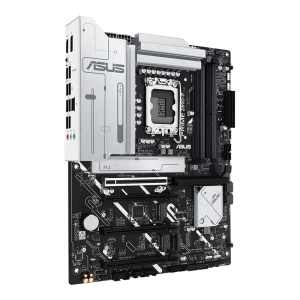

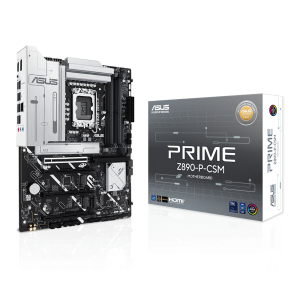

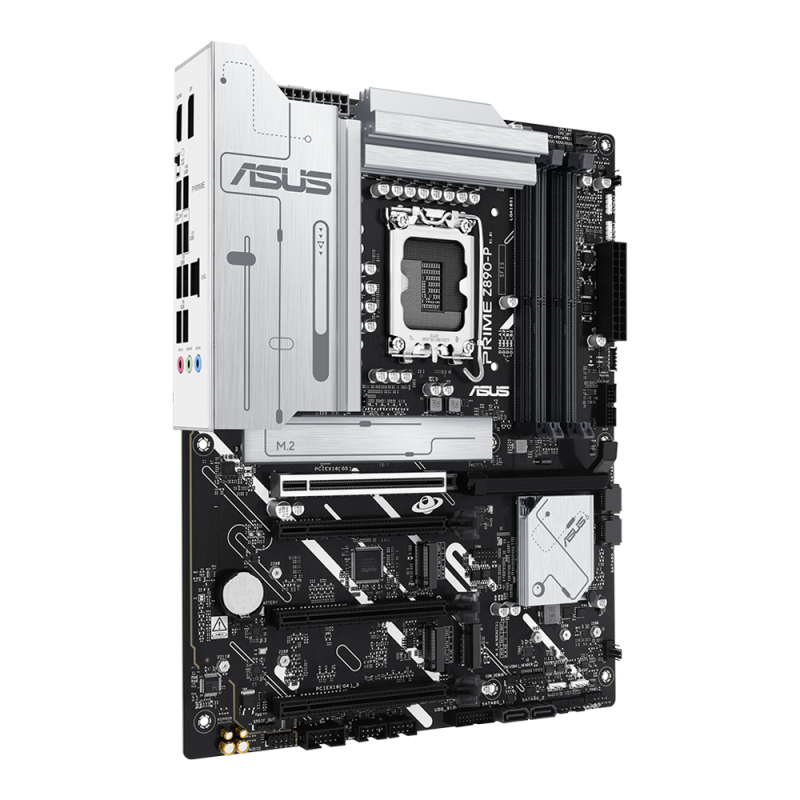

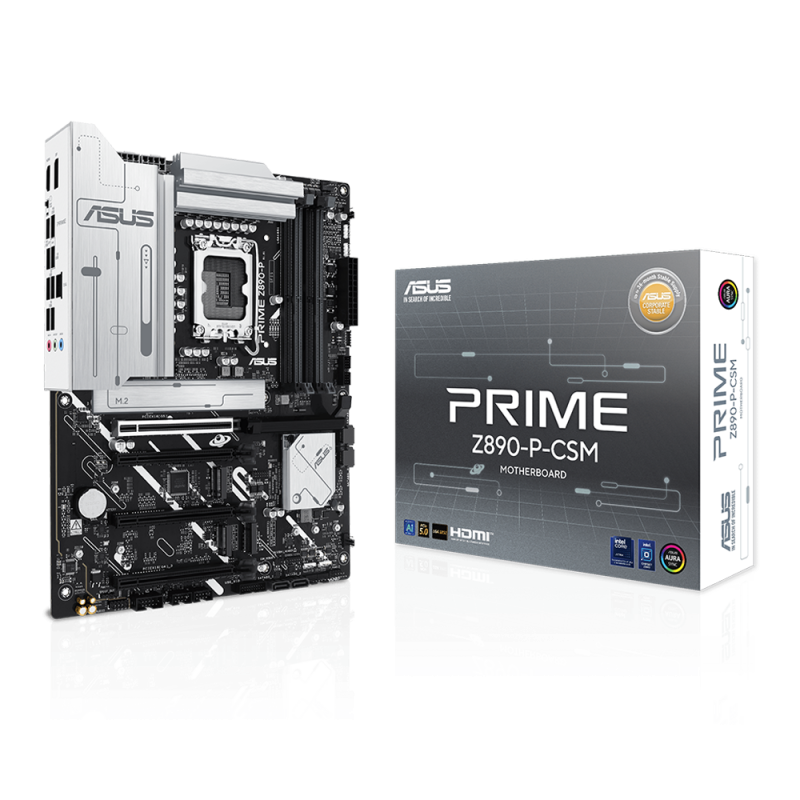

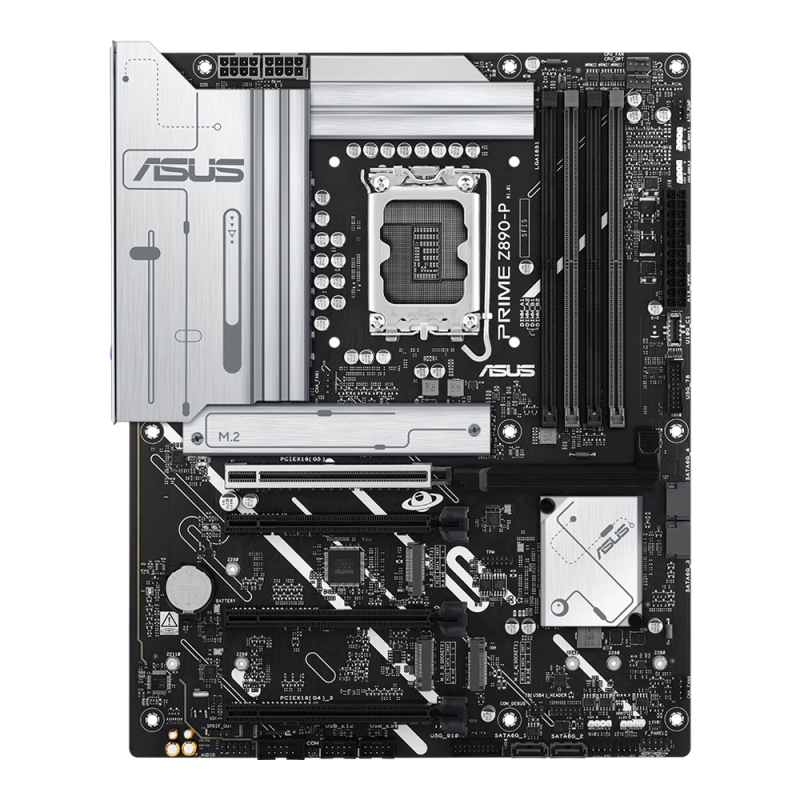

PRIME Z890-P-CSM |
| Chipset |
Intel® Z890 Chipset |
| CPU Support |
Intel Core Ultra Processors (Series 2), LGA1851 |
| Memory Channel |
Dual |
| DIMM Slots |
4 x DIMM slots, max. 256GB, DDR5 |
| Memory Support |
Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture |
| Graphics |
1 x DisplayPort
1 x HDMITM port
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output |
| Storage |
4 x M.2 slots
4 x SATA 6Gb/s ports |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Ethernet |
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard |
| Wireless & Bluetooth |
No |
| USB |
Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 10Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Internal I/O Ports |
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header |

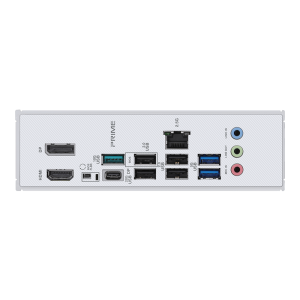

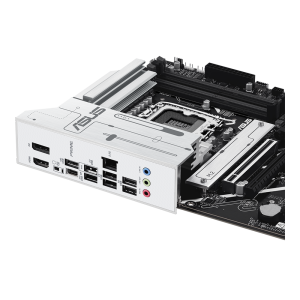

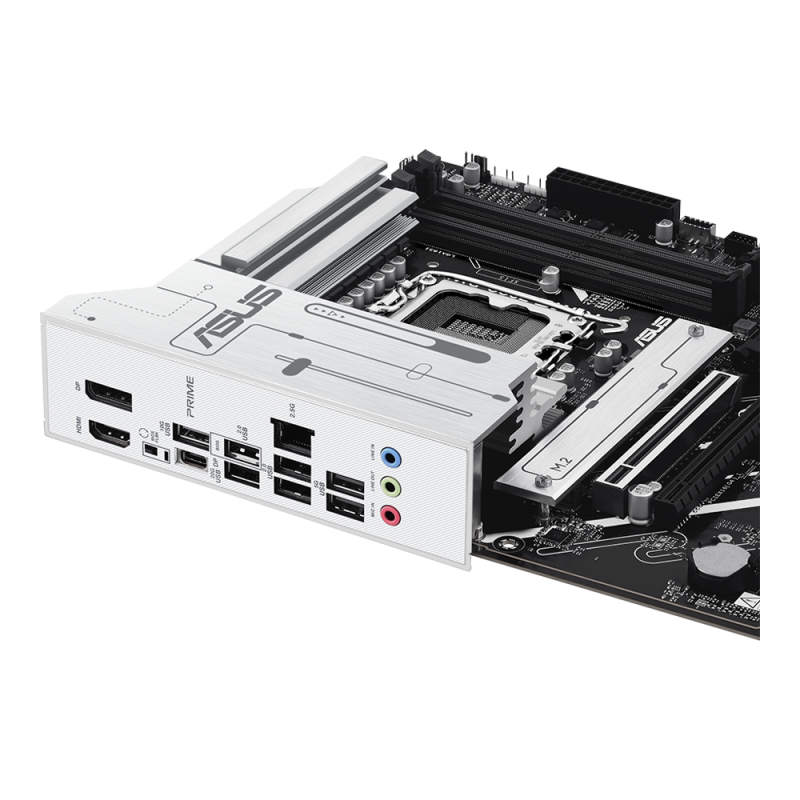

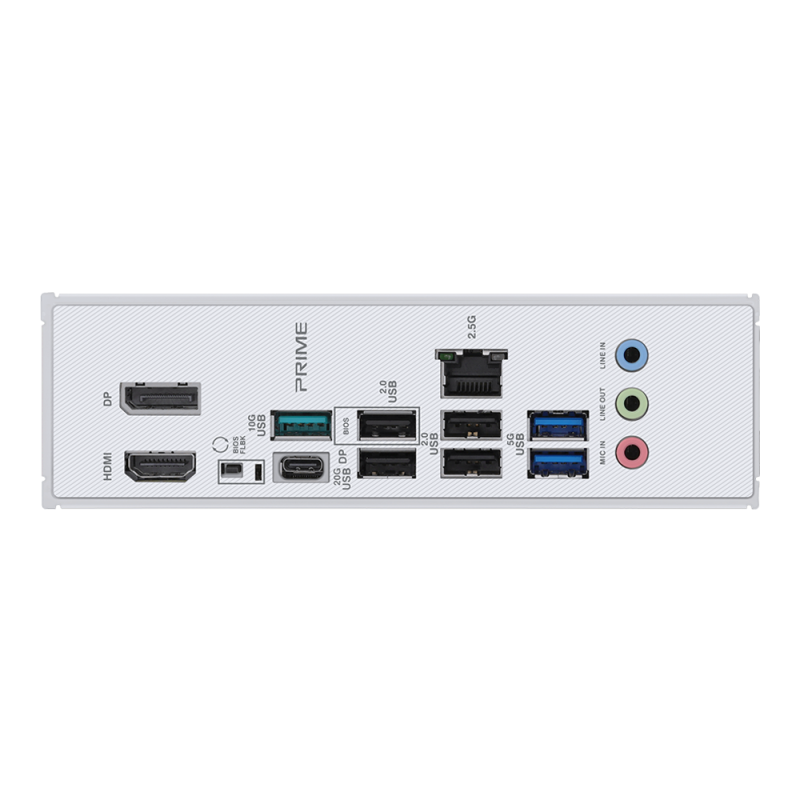

| Back Panel I/O Ports |
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button |
| Expansion Slots |
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode) |
| BIOS |
256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| Form Factor |
ATX Form Factor
12 inch x 9.6inch ( 30.5 cm x 24.4 cm ) |
| Warranty |
1 Year |
