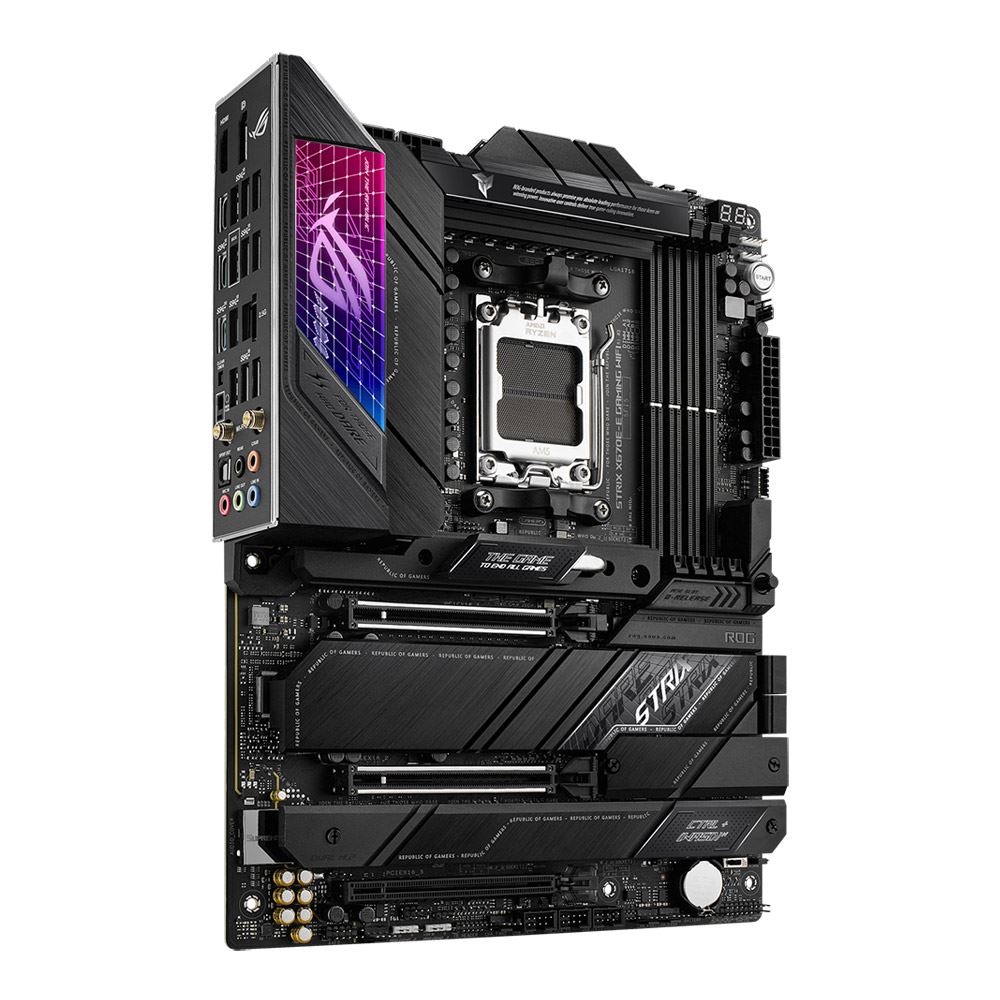

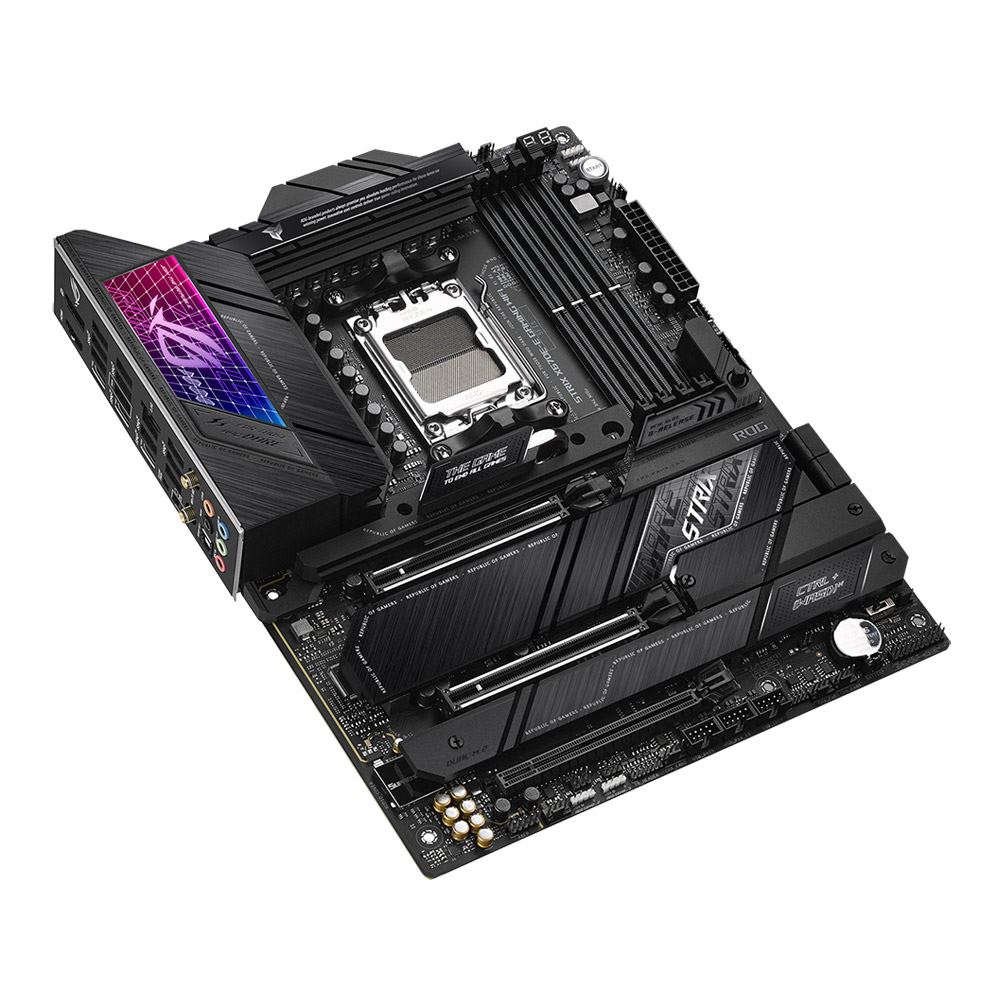

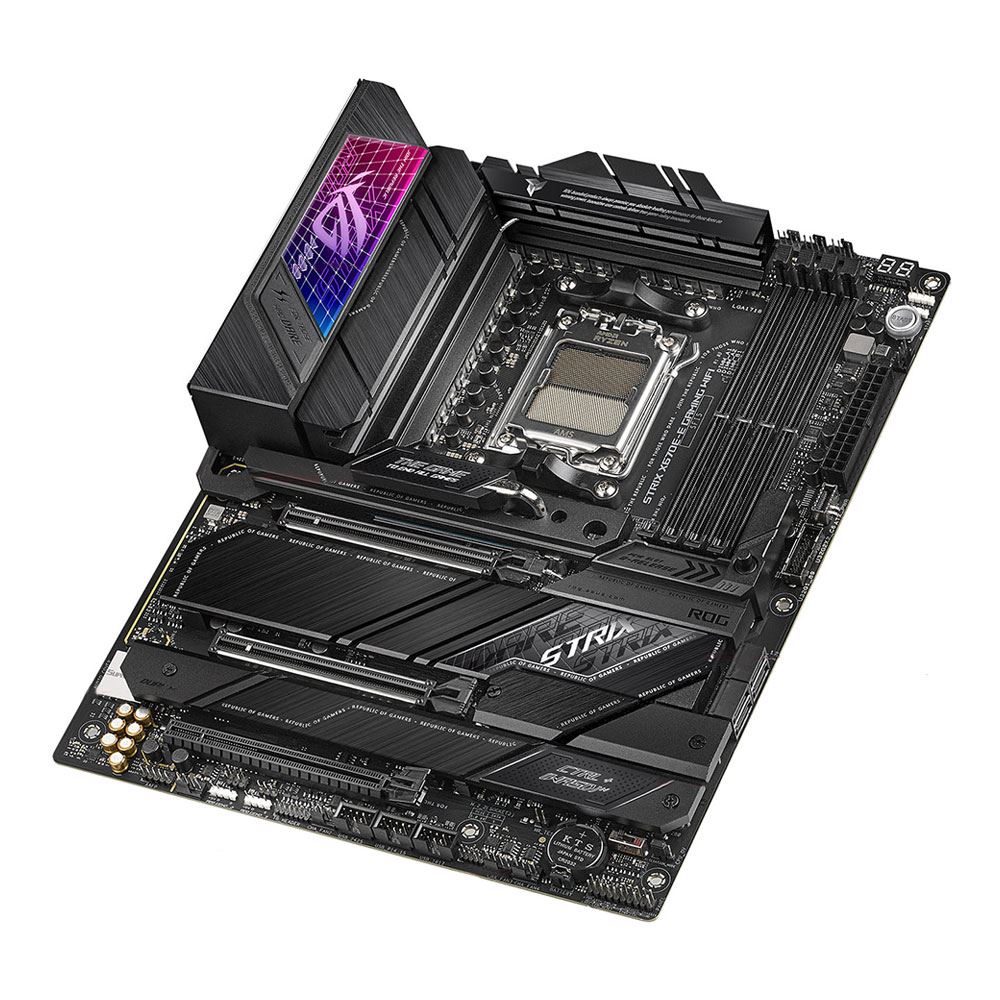

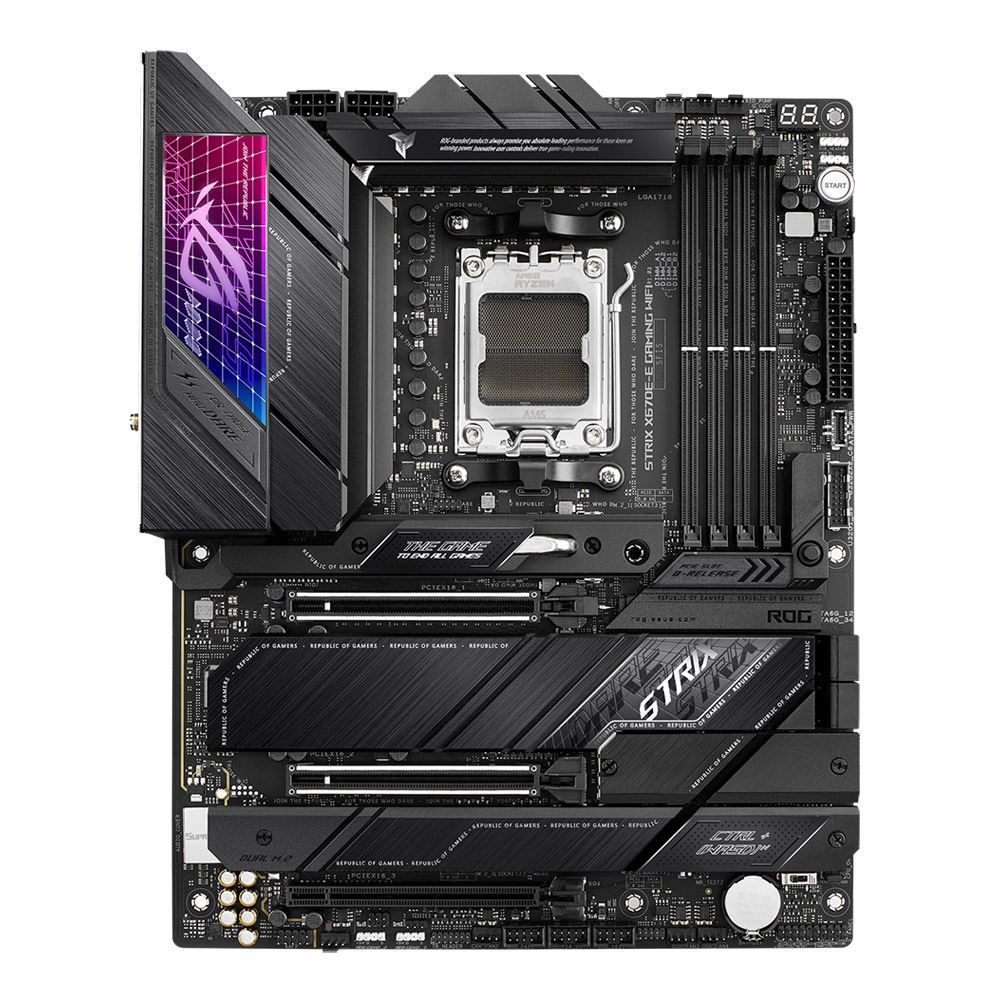

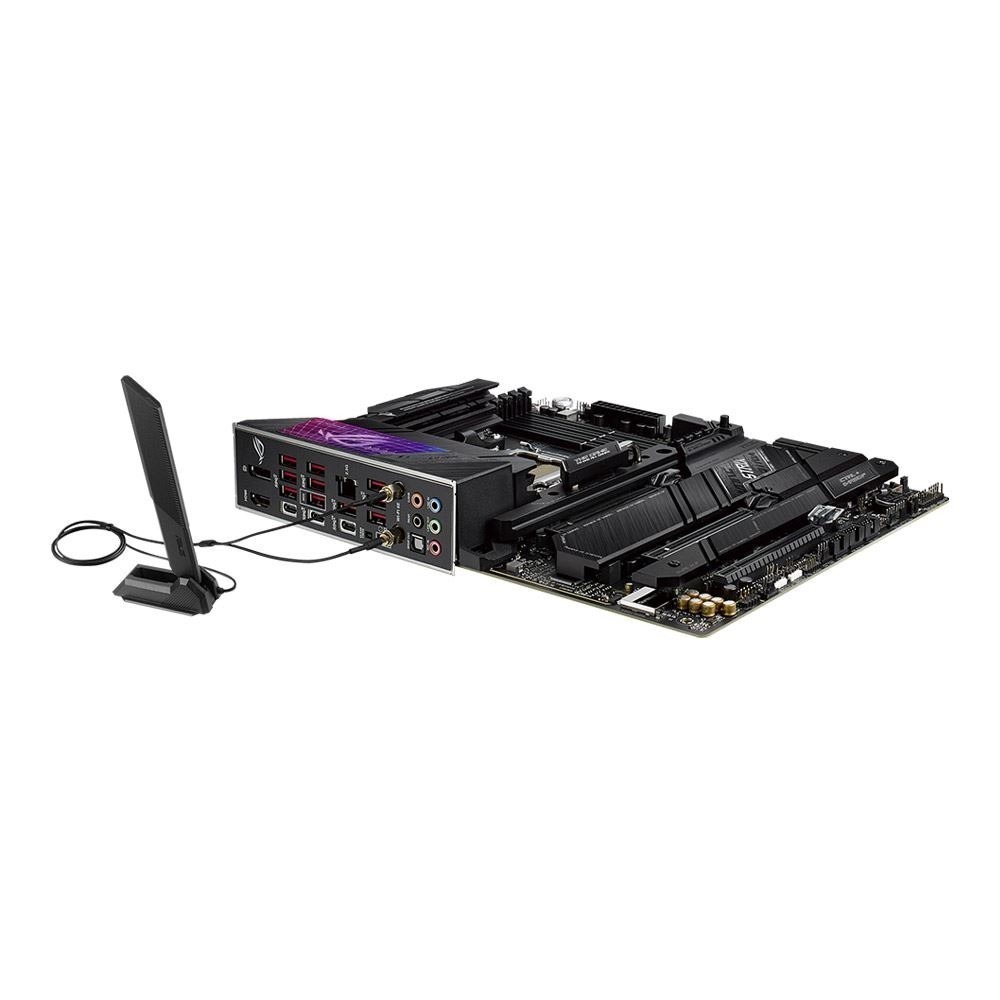

ASUS ROG STRIX X670E-E GAMING WIFI MOTHERBOARD

ASUS
  • AMD Socket AM5(LGA 1718) for AMD Ryzen 7000 Series Desktop Processors.
  • 4 x DIMM, Max. 128GB, DDR5: 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffer.
  • Intelligent Control: ASUS-exclusive tools including AI Cooling II, Two-Way AI Noise-Cancelation and AI Networking for easy configuration.
  • Robust Power Solution: 18 + 2 teamed power stages with 8+8 pin ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors.
  • Optimized Thermal Design:M.2 Combo-sink and M.2 backplate for PCIe 5.0 M.2_1 slot, three on board M.2 heatsinks, plus a massive bundled PCIe 5.0 M.2 heatsink as accessory.
  • Onboard WiFi 6E, Intel 2.5 Gb Ethernet and ASUS LANGuard.
  • Fastest Gaming Connectivity: Dual PCIe 5.0 slots, triple Gen 5 M.2 slots onboard, USB 3.2 Gen 2×2 front-panel connector, and Thunderbolt 4 header.
  • Industry-Leading Audio: ROG SupremeFX ALC4080 W Savitech SV3H712 amplifier.
Availability:

Out of stock

 167,400

Out of stock

Brand

Model
Brand ASUS
Series ROG
Model STRIX X670E-E GAMING WIFI
Part Number 90MB1BR0-M0AAY0
Supported CPU
CPU Socket Type  AM5
CPU Type Supports AMD Ryzen 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
Chipsets
Chipset  AMD X670E
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard Supports DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

Maximum Memory Supported 128GB
Channel Supported  Dual Channel
ECC Supported Non-ECC
Buffer Supported Un-buffered

* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Expansion Slots
PCI Express 5.0 x16 2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes)
PCI Express 4.0 x16 1 x PCI Express 4.0 x16 slot (supports x4 mode)
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)AMD X670 Chipset
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
Onboard Audio
Audio Chipset  Realtek ALC4080
Audio Channels  ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playbackAudio Features
– Audio Shielding
– Savitech SV3H712 AMP
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Onboard LAN
Max LAN Speed 2.5Gbps
Wireless LAN Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
Bluetooth Bluetooth v5.2

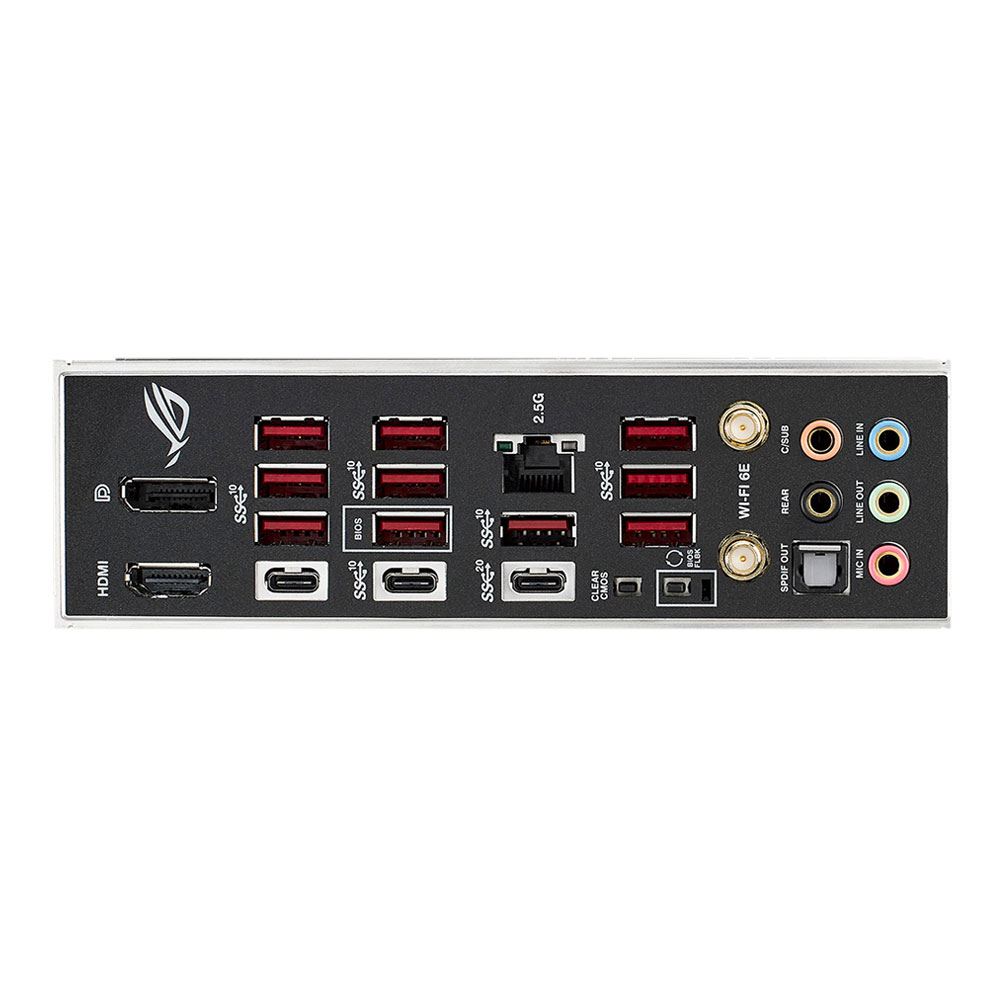

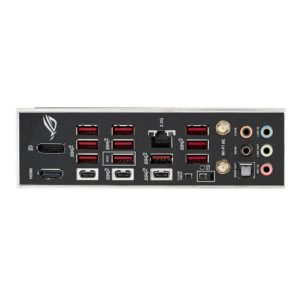

Rear Panel Ports
Back I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x Type-C)
12 x USB 3.2 Gen 2 ports (10 x Type-A, 2 x USB Type-C)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel I225-V 2.5Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Other Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headerStorage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s portsMiscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Alteration Mode Switch
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x Start button
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Windows 11 Compatibility
Windows 11 Supported
Features
Features Extreme Engine Digi+
– 5K Black Metallic CapacitorsASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-Code
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-SlotASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design
– Massive Bundled PCIe 5.0 M.2 HeatsinkASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMMAURA Sync
– AURA RGB header
– Addressable Gen 2 headers

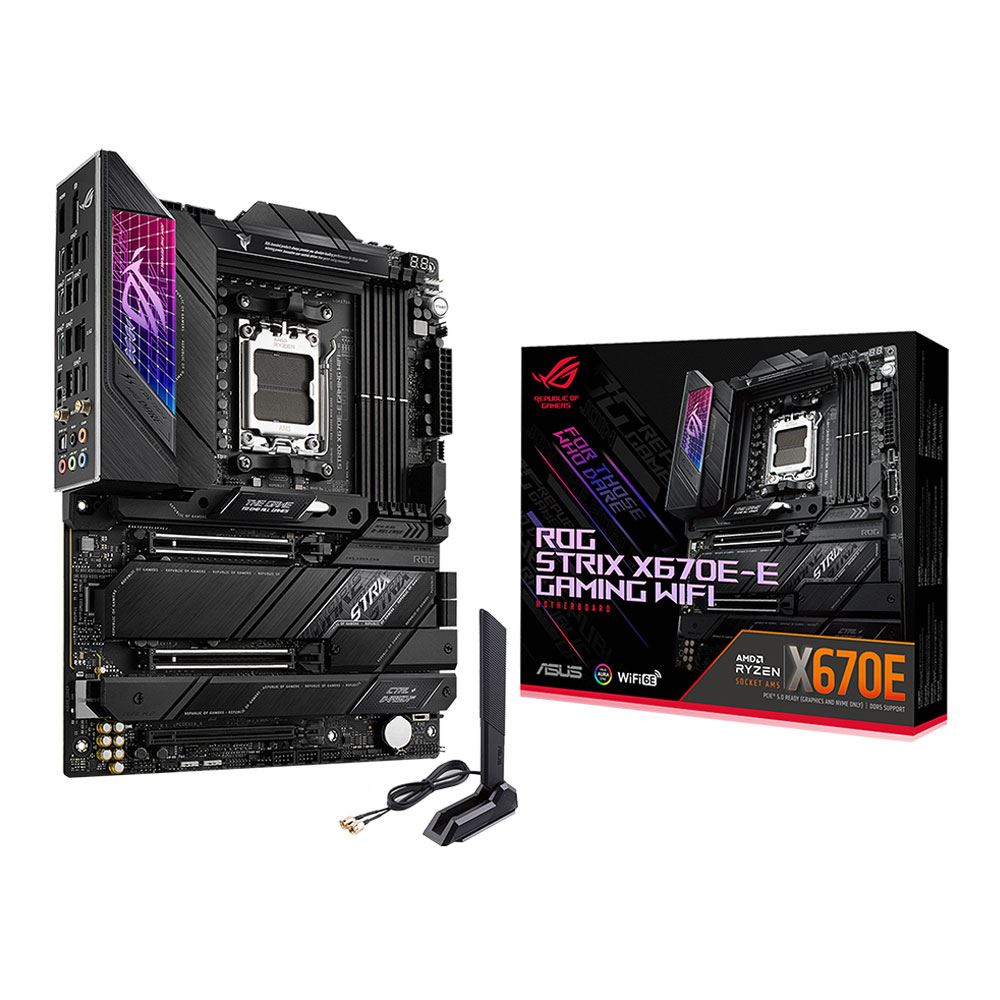

Packaging
Package Contents Cables
2 x SATA 6Gb/s cablesAdditional Cooling Kit
1 x Thermal pad for M.2Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Massive PCIe 5.0 M.2 Bundled Heatsink
1 x M.2 Q-Latch package for M.2 backplate
1 x M.2 Q-Latch package
1 x ROG Graphics card holder
2 x Rubber Packages for M.2
1 x Rubber Package for M.2 backplate
1 x ROG key chain
1 x ROG Strix sticker
1 x ROG Strix thank you cardDocumentation
1 x User guide
