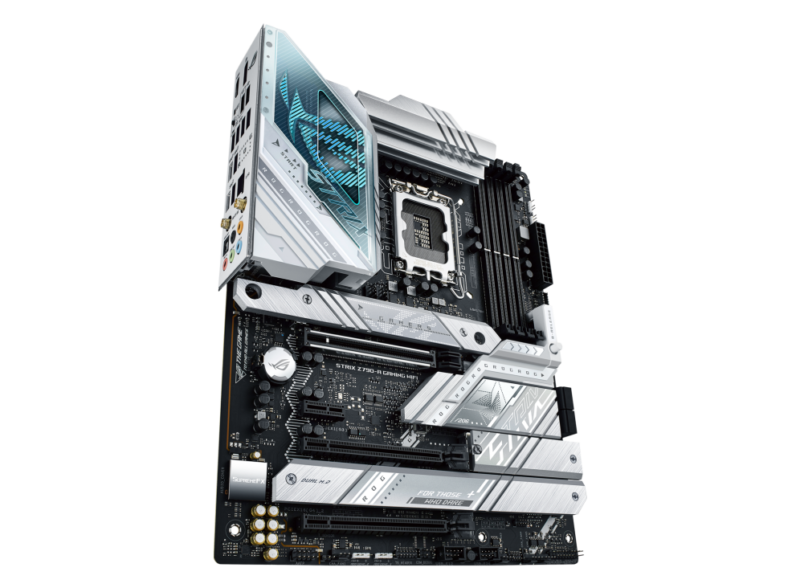

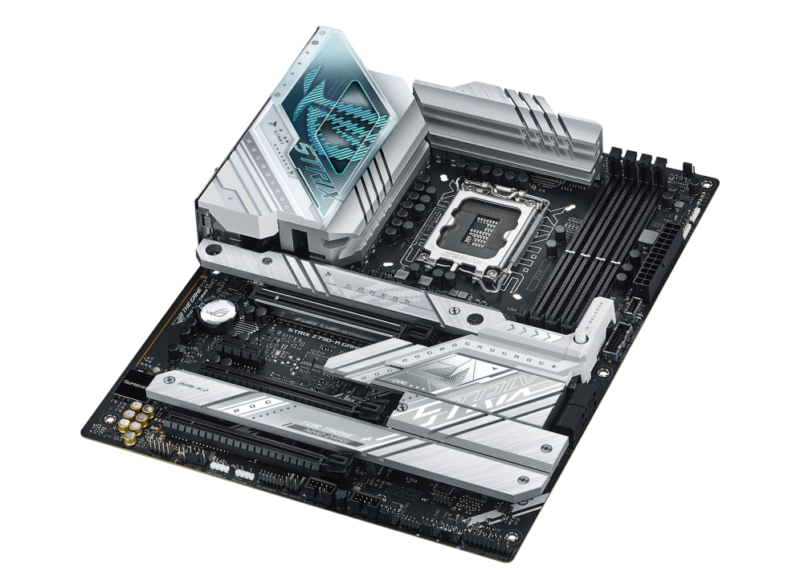

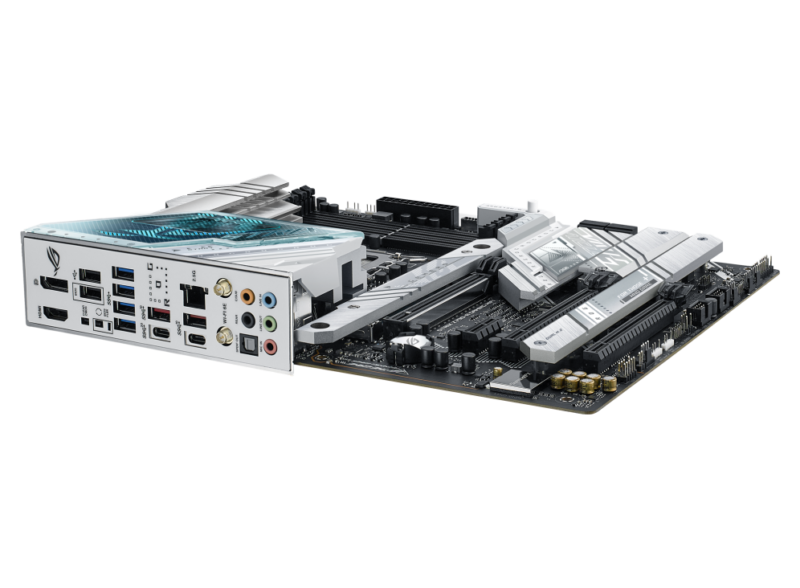

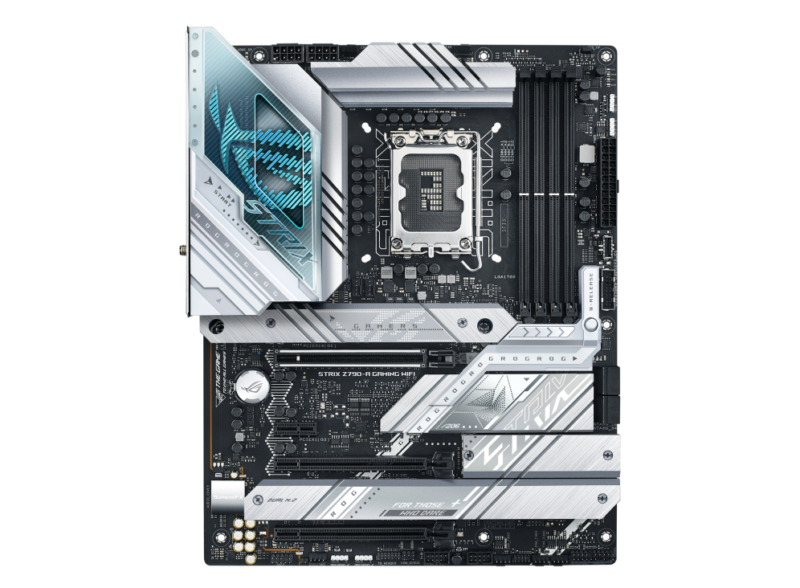

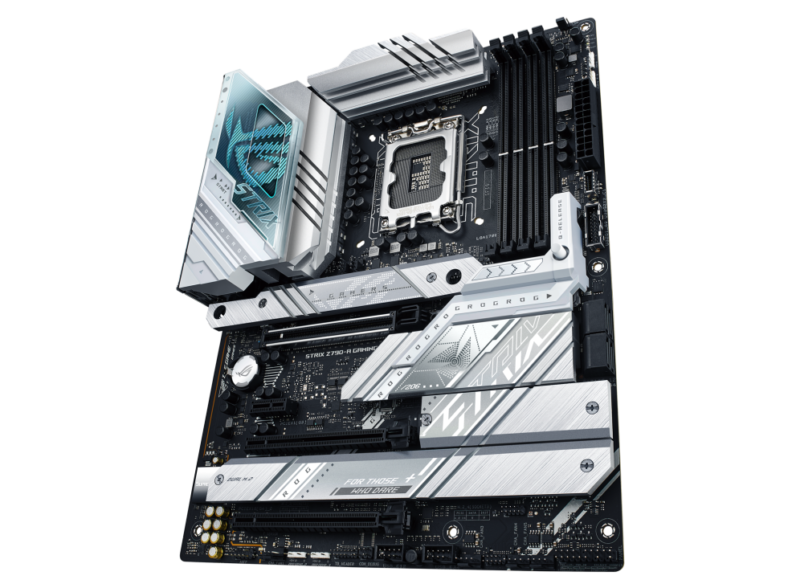

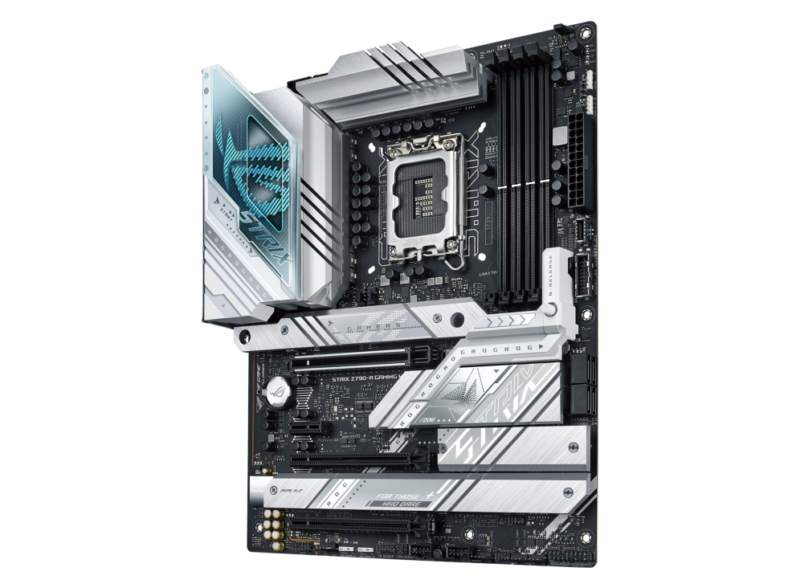

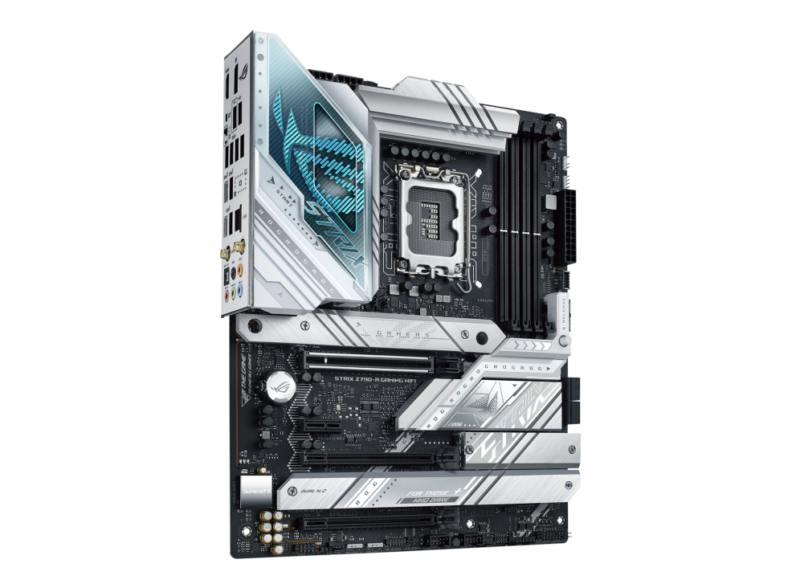

ASUS ROG Strix Z790-A GAMING WIFI LGA 1700 ATX Motherboard

ASUS
Availability:

Out of stock


Key Features
  • ATX Form Factor
  • Z790 Chipset
  • Intel LGA1700 Socket
  • 4 x DDR5 Dual-Channel RAM Slots
  • 4 x SATA, 4 x M.2 PCIe
  • 1 x PCIe 5.0 x16 | 2 x PCIe 4.0 x16 (x4)
  • 1 x PCIe 3.0 x1
  • Wi-Fi 6E | 2.5 GbE | Bluetooth 5.3
  • USB 2.0, 3.0 Gen 1, Gen 2, Gen 2×2
  • Windows 10 & 11 Support

 135,000

Out of stock

Compare

Designed for gaming enthusiasts looking to take their experience to the next level, the robust ASUS ROG STRIX Z790-A GAMING WIFI LGA 1700 ATX Motherboard drives performance with an enhanced electrical layout, PCIe 5.0 technology, and vast connectivity options for gaming peripherals.

At the heart of the ROG STRIX Z790-A is an LGA 1700 socket and Z790 chipset, allowing you to leverage a wide range of 12th and 13th Gen Intel processors. Four DDR5 Dual-Channel RAM slots allow you to install up to 192GB of memory with speeds up to 7800 MHz when overclocked, providing you with increased multitasking and rendering capabilities. Four M.2 PCIe and four SATA III storage interfaces allow you to combine an array of storage drives to build a massive gaming library. A single PCIe 5.0 x16 slot is available for resource-demanding graphics cards while two PCIe 4.0 x16 (in x4 mode) and one PCIe 3.0 x1 slot support a wide range of utility cards. Between the back panel and internal headers, you get access to several USB 3.2 Gen 1, Gen 2, and Gen 2×2 ports and internal headers, offering plenty of support for peripherals such as mice, keyboards, and controllers as well as resource-demanding devices like external drives. Wireless devices can utilize Bluetooth 5.3 technology for a reliable cable-free experience. Connect to your wireless network with Wi-Fi 6E (802.11ax) or use the integrated 2.5 Gigabit Ethernet port if you prefer a wired connection.

AI Equipped
Leveraging Artificial Intelligence, the ROG STRIX Z790-A can boost performance with automatic AI overclocking and cooling, enhancing your games and productivity without compromising thermal capabilities. AI noise cancellation is an audio-focused utility used to reduce background sound, ensuring others can hear you clearer when engaging in team-focused titles or delivering presentations remotely. GameFirst VI is an AI networking tool that prioritizes and optimizes your network connection for smoother online gameplay, essential for competitive online titles.
Enhanced Power Solution
Equipped with 16+1 70A power stages with ProCool II connectors, alloy chokes, and durable capacitors, the ROG STRIX Z790-A delivers stable power throughout the entire motherboard, maintaining electrical volume whether you are performing simple tasks or operating at full power during resource-demanding processes.
Comprehensive Cooling
To ensure your system remains cool under heavy loads, the ROG STRIX Z790-A motherboard incorporates a large VRM heat sink for capacitors and chokes as well as integrated double-sided M.2 heat sinks and a unique PCH fanless heat sink, delivering better thermal performance while preventing throttling. Hybrid fan headers and Fan Xpert 4 software control fans and liquid pump elements for enhanced cooling that can be modified to your preference.
Connectivity
Between the backplate and the internal headers, the ROG STRIX Z790-A offers robust connectivity suitable for your peripherals. USB-A and USB-C 3.2 Gen 1 and Gen 2 ports deliver up to 5 and 10 Gb/s data transfer speeds, respectively, suitable for webcams, mics, and external storage drives. A USB-C 3.2 Gen 2×2 port gives you up to 20 Gb/s data transfer speed for resource-demanding devices such as storage arrays and audio interfaces. A front panel USB-C 3.2 Gen 2×2 port not only helps transfer data but also offers up to 30W Power Delivery to charge and support resource-demanding peripherals. You can expand your connectivity with an internal Thunderbolt 4 header, allowing you to utilize high-speed connectivity that supports fast transfer speeds and Power Delivery technologies.
7.1-Channel Audio
Immerse yourself in your favorite games with high-fidelity audio backed by the ROG SupremeFX 7.1-channel ALC4080 codec and Savitech SV3H712 amplifier, working together to drive clear and crisp audio. Gold-plated audio jacks and premium capacitors optimize audio conductivity for a reliable signal, preventing static and other interference.
Additional Enhancements
Several on-board enhancements help with the installation process while also providing additional support for the long-term with SafeDIMM RAM seating, PCIe 5.0 Safeslot, Q-LED, Q-Code, M.2 Q-Latch, CPU socket lever protector, and a pre-mounted I/O shield. Additionally, BIOS FlashBack and Clear CMOS offer support on a software level by allowing you to easily update the BIOS without assembling your entire system and reset the CMOS, respectively. You also get access to Two-Way AI Noise Cancelation which improves audio quality using artificial intelligence for clear sound.
SKU: 4711387028483 Category:
Brand

CPU

Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® Z790 Chipset

Memory

4 x DIMM, Max. 192GB, DDR5
7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Optimum II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors’ or graphic cards’ resolution.

Expansion Slots

Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports*
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Ethernet

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

USB

Rear USB (Total 10 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2×2 connector  (supports USB Type-C® with up to 30W PD Fast-charge)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers supports 4 additional USB 2.0 ports

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
*The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Back Panel I/O Ports

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS Flashback™  button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™  header

Special Features

Extreme Engine Digi+
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot

ASUS Thermal Solution

– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design

ASUS EZ DIY

– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM

Aura Sync
– Aura RGB header
– Addressable Gen 2 headers

Software Features

ROG Exclusive Software
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound
ASUS Exclusive Software
Armoury Crate
– AIDA64 Extreme (60 days free trial)
– Aura Creator
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– Easy Optimization with AI Overclocking
– TPU
– DIGI+ VRM
– Turbo app
– PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR

UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2

Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 backplate Q-Latch package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x M.2 Rubber Packages
1 x M.2 backplate Rubber

PackageDocumentation
1 x User guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
