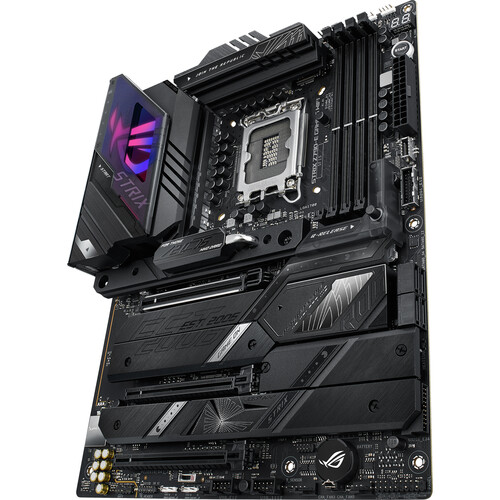

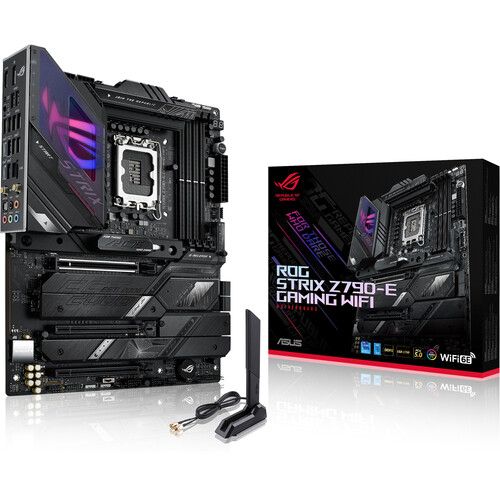

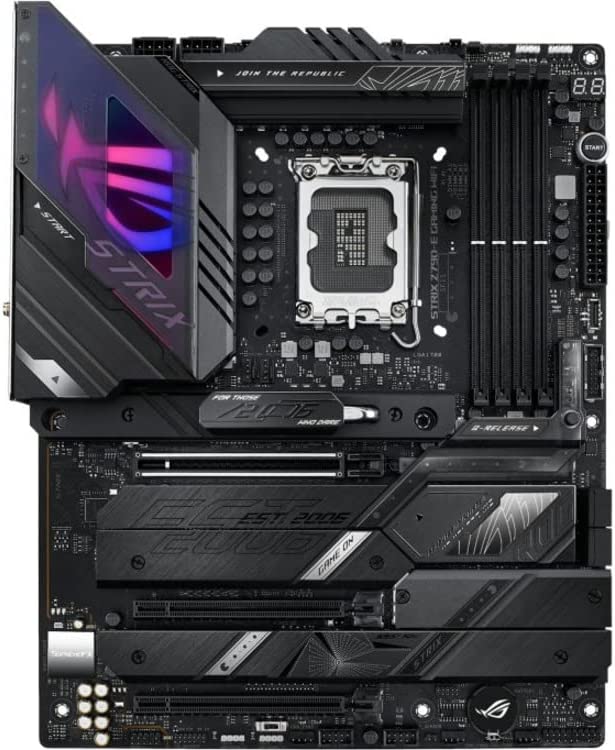

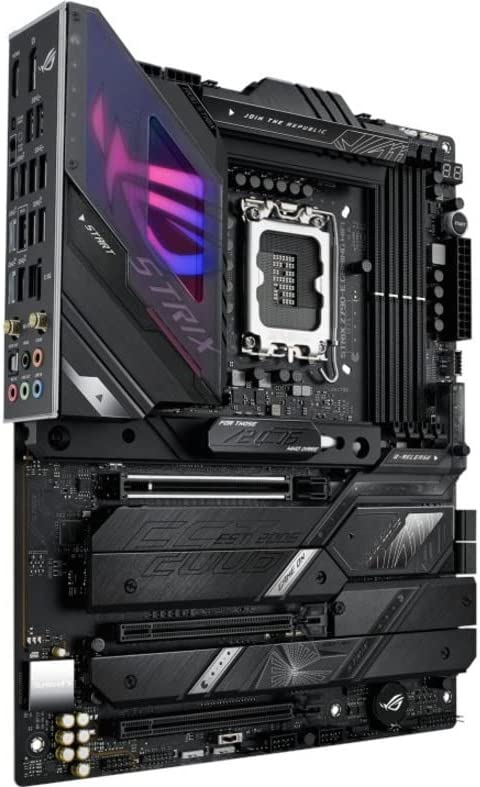

ASUS ROG STRIX Z790-E GAMING WIFI LGA 1700 Gaming Motherboard

ASUS

  • A physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device
  • BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.
  • This convenient button removes the need to manually jump hard-to-reach pins during testing and troubleshooting.
  • The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
  • The on-board LED panel shows 2-digit diagnostic codes, providing a valuable reference for troubleshooting common boot problems and hardware issues.

 171,720

Compare

SKU: 4711081938545 Category:
Brand

Specifications



CPU

Chipset Intel Z790
CPU Socket LGA 1700

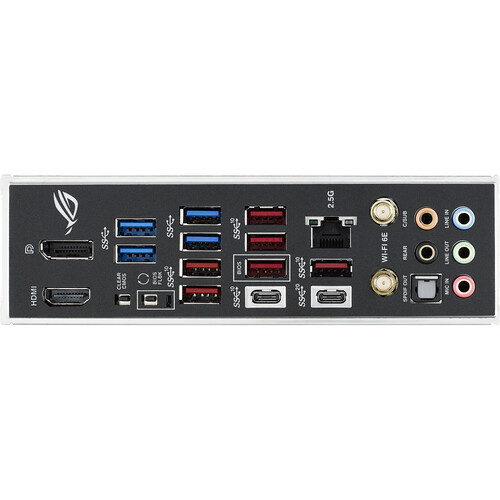

Back Panel I/O

USB 1 x USB-C (USB 3.2 Gen 2×2)
6 x USB-A (USB 3.1/3.2 Gen 2)
1 x USB-C (USB 3.1/3.2 Gen 2)
4 x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
Thunderbolt None
Display 1 x DisplayPort
1 x HDMI
Audio 5 x 1/8″ / 3.5 mm
Ethernet / Controller 1 x Intel 2.5Gigabit
Wi-Fi Antenna 2 x Connector
Buttons BIOS Flashback, Clear CMOS

Memory

Memory Slots 4 x 288-Pin
Memory Support DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC Unbuffered

Storage Expansion

SATA 4 x SATA III
M.2 1 x M Key 2242, 2260, 2280, 22110 (PCIe 5.0 x4)
3 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Optane Memory Support No
RAID Support RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2)

Internal I/O

Expansion Slots 1 x PCIe 5.0 x16
2 x PCIe 4.0 x16 (x4 mode)
USB 1 x 3.2 Gen 2×2 Header (Supports 1 USB-C Port)
2 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2 x 2.0 Header (Supports 4 USB-A Port)
Air Cooling 2 x 4-Pin CPU
5 x 4-Pin System
1 x Thermal Sensor
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
2 x 8-Pin CPU
Security Chassis Intrusion
LED Header 4 x RGB
Audio None
Diagnostics CPU Overclock, Power
Add-On 1 x Thunderbolt Header

BIOS

ROM 256 Mb

Front Panel I/O

Front Panel I/O AAFP, USB 3.0 / 3.1/3.2 Gen 1

Audio

Audio Codec Realtek ALC4080 (7.1-Channel)
DAC Savitech SV3H712

Wireless

Bluetooth 5.2
Wi-Fi Wi-Fi 6E (802.11ax) with MU-MIMO Support

Software

OS Compatibility Windows 10
Windows 11
*As of September, 2022: Check with manufacturer for the most up-to-date compatibility

Physical

Form Factor ATX
Dimensions 12.0 x 9.6″ / 30.5 x 24.4 cm
