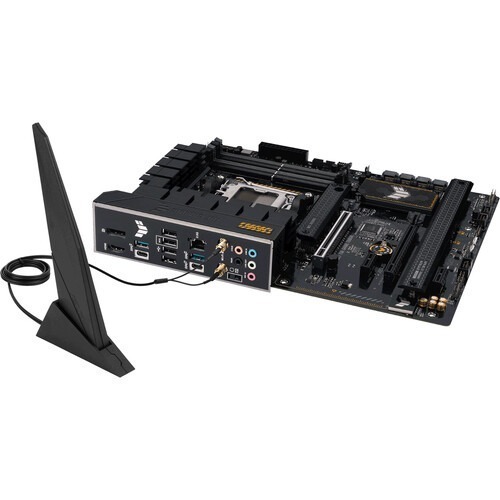

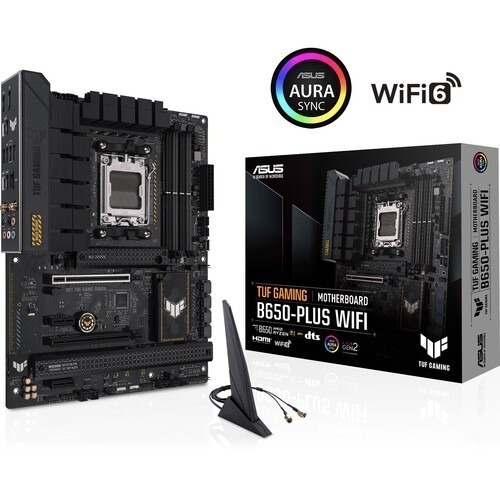

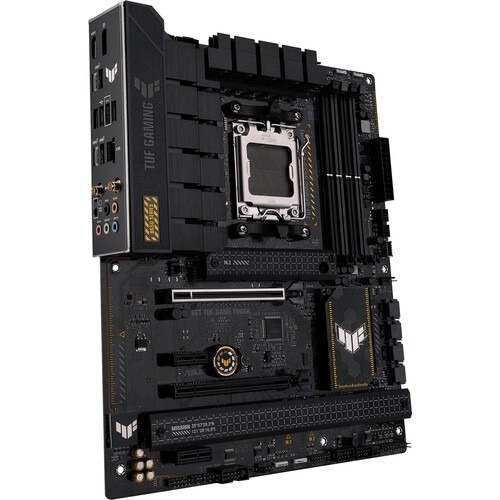

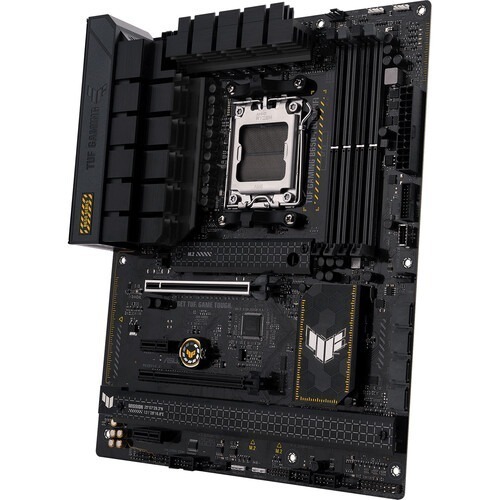

ASUS TUF Gaming B650-PLUS WiFi Gaming Motherboard

ASUS
Key Features
  • ATX Form Factor
  • AMD B650 Chipset
  • AM5 Socket
  • 4 x Dual-Channel DDR5 Slots
  • 4 x SATA, 3 x M.2 PCIe
  • 1 x PCIe 4.0 x16 | 1 x PCIe 4.0 x16 (x4)
  • 2 x PCIe 4.0 x1
  • USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2×2
  • Wi-Fi 6 | Bluetooth 5.2 | 2.5 GbE
  • For Windows 10 & 11
Ad
Availability:

Out of stock

₨ 86,400

Out of stock

Designed for gamers looking for robust connectivity and enhanced performance, the ASUS TUF GAMING B650-PLUS WIFI AM5 ATX Motherboard enables seasoned builders to leverage the power of AMD’s Ryzen 7000 processors and gaming-focused components.

An AMD AM5 socket allows you to install a wide range of AMD Ryzen processors from the 7000 Series family with ease. Four DDR5 DIMM slots allow you to utilize the enhanced speed and performance needed for gaming as well as editing and replaying your favorite in-game moments. Four SATA and three M.2 interfaces allow you to install an array of storage drives, creating a massive library for your titles, video assets, and more. Install graphics and utility cards with one PCIe 4.0 x16, one PCIe 4.0 x16 (in x4 mode), and two PCIe 4.0 x1 slots. A wide range of USB ports allow you to plug in your favorite peripherals such as keyboards, mice, audio interfaces, and more with USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2×2 support. Bluetooth 5.2 functionality is available for wireless devices like headsets and controllers. Connect to your network wired or wirelessly with the integrated 2.5 Gigabit Ethernet port for wired connections or use Wi-Fi 6 (802.11ax) for a quick and reliable cable-free experience.

Power Design
A 12+2 teamed power solution, 8+4 Pro Cool sockets, and alloy chokes with durable capacitors ensure reliable electrical loads suitable for resource-hungry games.
M.2 PCIe 5.0
M.2 PCIe 5.0 technology enables you to quickly load your programs faster off your M.2 SSD, getting you into your games and applications even faster.
Connectivity
USB-C 3.2 Gen 2 and Gen 2×2 interfaces provide you with enhanced data transfer speeds up to 10 and 20 Gb/s, respectively, allowing you to utilize a wide range of peripherals such as audio interfaces, external storage solutions, and more. With front panel support, the TUF Gaming incorporates internal headers for USB-A and USB-C 3.2 Gen 1 devices, giving you up to 5 Gb/s data transfer speeds for quick file management.

AI Noise Cancelation
Two-way AI Noise Cancelation reduces background noise from the microphone and audio output for clear communication in games and conferences.

Comprehensive Cooling
Enlarged VRM and PCH heatsinks, M.2 heatsinks, hybrid fan headers, and Fan Xpert 2+ utility in Armoury Crate software allow you to optimize cooling capabilities whether you prefer fan or AiO liquid cooling.

Aura Sync
Stylish edge lighting design, addressable RGB headers, and RGB strip header allow you to add a splash of color to your system, turning your rig into the centerpiece of your gaming room.
SKU: 4711081912668 Categories: ,
Brand

brands

CPU
Chipset AMD B650
CPU Socket AM5

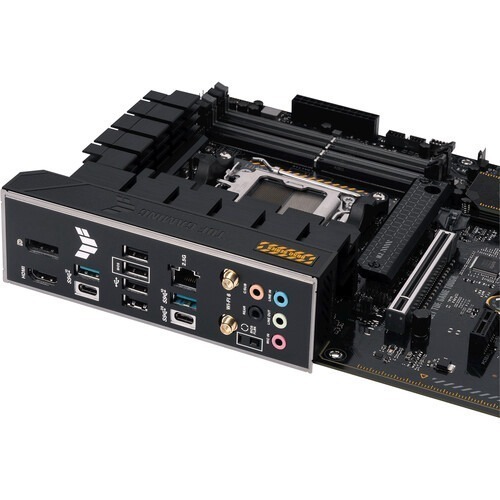

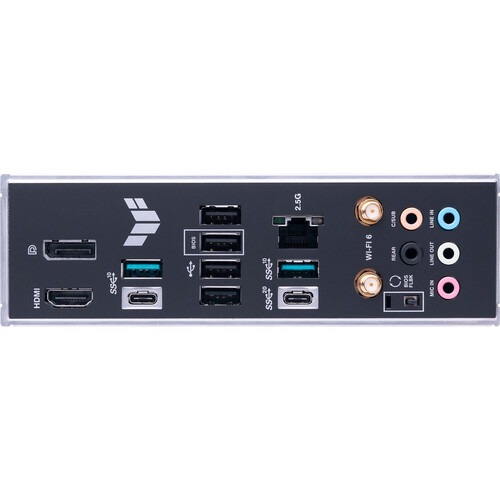

Back Panel I/O
USB 1 x USB-C (USB 3.2 Gen 2×2)
1 x USB-C (USB 3.1/3.2 Gen 2)
2 x USB-A (USB 3.1/3.2 Gen 2)
4 x USB-A (USB 2.0)
Thunderbolt None
Display 1 x DisplayPort
1 x HDMI
Audio 5 x 1/8″ / 3.5 mm
Ethernet / Controller 1 x Realtek 2.5Gigabit
Wi-Fi Antenna 2 x Connector
Buttons BIOS Flashback
Memory
Memory Slots 4 x 288-Pin
Memory Support DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC, ECC Unbuffered
Storage Expansion
SATA 4 x SATA III
M.2 1 x M Key 2242, 2260, 2280 (PCIe 5.0 x4)
1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
RAID Support RAID 0, 1, 10 (SATA)
RAID 0, 1, 10 (M.2)
Internal I/O
Expansion Slots 1 x PCIe 4.0 x16
1 x PCIe 4.0 x16 (x4 mode)
2 x PCIe 4.0 x1
USB 1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2 x 2.0 Header (Supports 4 USB-A Port)
Air Cooling 2 x 4-Pin CPU
4 x 4-Pin System
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin ATX
1 x 4-Pin ATX
Security Chassis Intrusion
LED Header 4 x RGB
Diagnostics Clear CMOS
Add-On 1 x Thunderbolt Header
Legacy 1 x Serial
BIOS
ROM 256 Mb
Front Panel I/O
Front Panel I/O AAFP, USB 3.0 / 3.1/3.2 Gen 1
Audio
Audio Codec Realtek ALC S1200A (7.1-Channel)
Wireless
Bluetooth 5.2
Wi-Fi Wi-Fi 6 (802.11ax) with MU-MIMO Support
Wireless Wi-Fi 6 (802.11ax) / Bluetooth 5.2
Software
OS Compatibility Windows 10
Windows 11
Physical
Form Factor ATX
Dimensions 9.6 x 12″ / 24.4 x 30.5 cm
Packaging Info
Package Weight 3.92 lb
Box Dimensions (LxWxH) 13.3 x 11 x 2.8″
