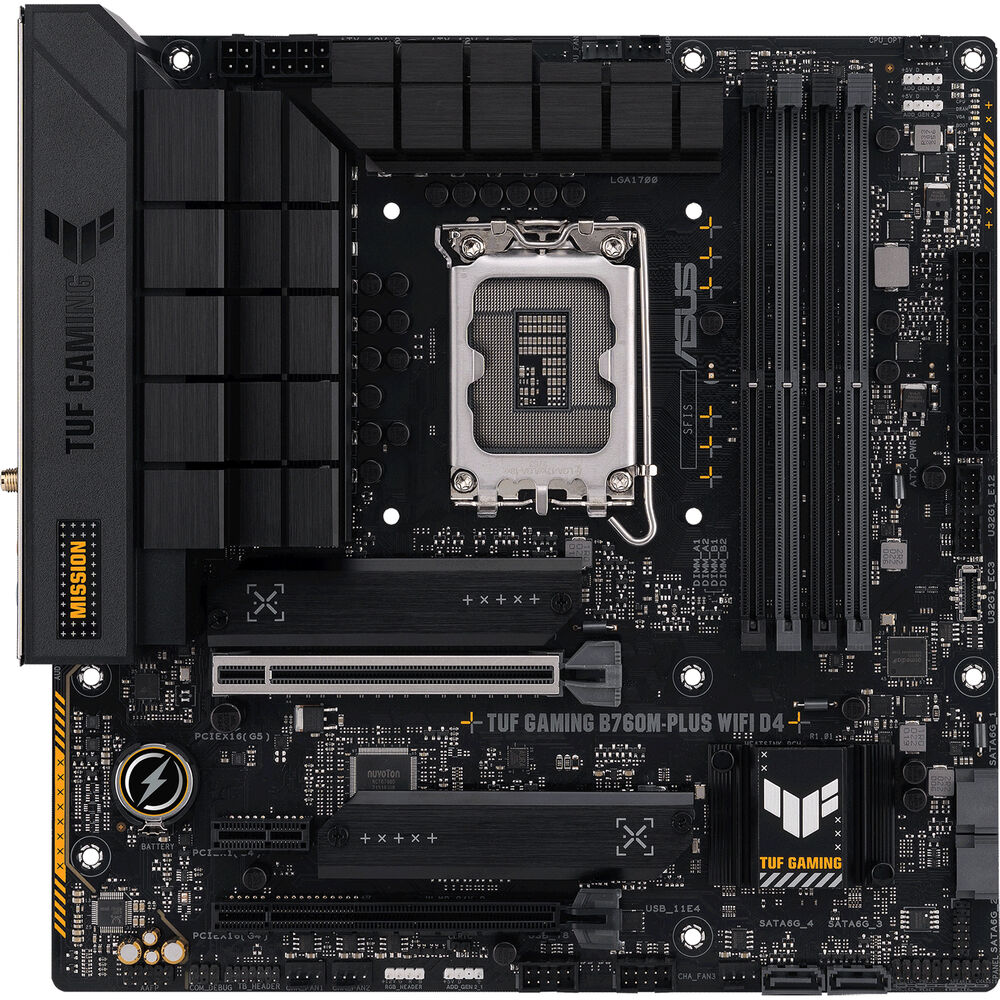

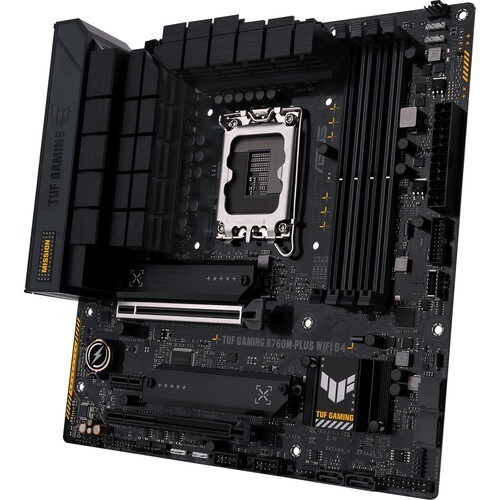

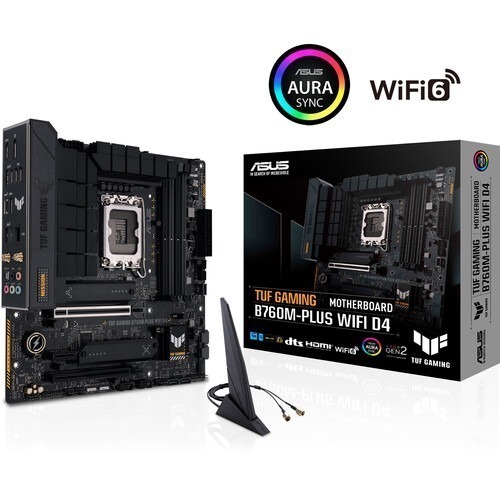

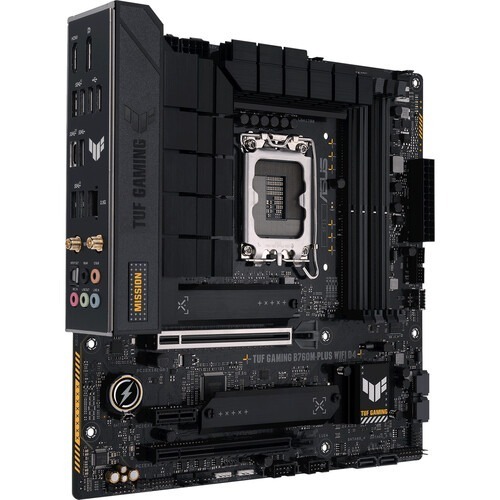

ASUS TUF GAMING B760M-PLUS WIFI D4 LGA1700 Micro-ATX Motherboard

ASUS
Add to Wishlist
Compare
Key Features
  • Micro-ATX Form Factor
  • Intel B760 Chipset
  • LGA1700 Socket
  • 4 x Dual-Channel DDR4 RAM Slots
  • 4 x SATA III, 2 x M.2
  • 1 x PCIe 5.0 x16 Expansion Slot
  • 1 x PCIe 4.0 x16 (x4), 1 x PCIe 4.0 x1
  • Wi-Fi 6 (802.11ax) | Bluetooth 5.2
  • USB 3.2 Gen 1, Gen 2, Gen 2×2 Support
  • Windows 10 & 11 (64-Bit)

₨ 52,920

Ad
Compare
Brand

CPU
CPU Socket LGA 1700
Back Panel I/O
USB 1 x USB-C (USB 3.2 Gen 2×2)
4 x USB-A (USB 3.1/3.2 Gen 2)
1 x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2 x USB-A (USB 2.0)
Thunderbolt None
Display 1 x HDMI
1 x DisplayPort
Audio 5 x 1/8″ / 3.5 mm
1 x S/PDIF
Ethernet / Controller 1 x Realtek 2.5Gigabit
Wi-Fi Antenna 2 x Connector
Memory
Memory Slots 4 x 288-Pin
Memory Support DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 4000, 4266, 4400, 4600, 4800, 5000, 5066, 5333 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC Unbuffered
Storage Expansion
SATA 4 x SATA III
M.2 2 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
Optane Memory Support Yes
RAID Support RAID 0, 1, 5, 10 (SATA)
Internal I/O
Expansion Slots 1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 mode)
1 x PCIe 4.0 x1
USB 1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2 x 2.0 Header (Supports 4 USB-A Port)
Air Cooling 2 x 4-Pin CPU
3 x 4-Pin System
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin CPU
1 x 4-Pin CPU
Security Chassis Intrusion
LED Header 4 x RGB
Audio None
Diagnostics Clear CMOS
Add-On 1 x Thunderbolt Header
BIOS
ROM 128 Mb
Front Panel I/O
Front Panel I/O AAFP, USB 3.0 / 3.1/3.2 Gen 1
Audio
Audio Codec Realtek (7.1-Channel)
Wireless
Bluetooth 5.2
Wi-Fi Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
Wireless Wi-Fi 6 (802.11ax) / Bluetooth 5.2
Software
OS Compatibility Windows 10 to 11
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility
Physical
Form Factor Micro-ATX
Dimensions 9.6 x 9.6″ / 24.4 x 24.4 cm
Packaging Info
Package Weight 3.43 lb
Box Dimensions (LxWxH) 11.4 x 10.9 x 2.7″
