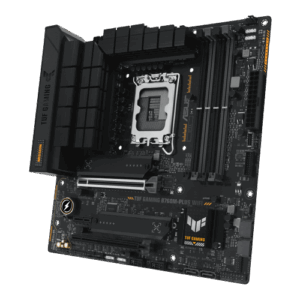

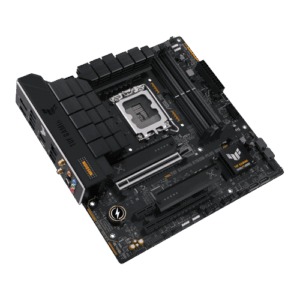

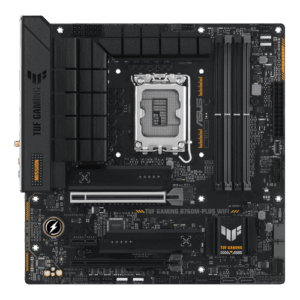

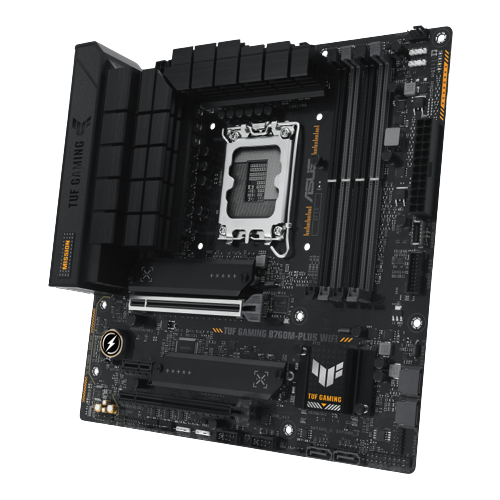

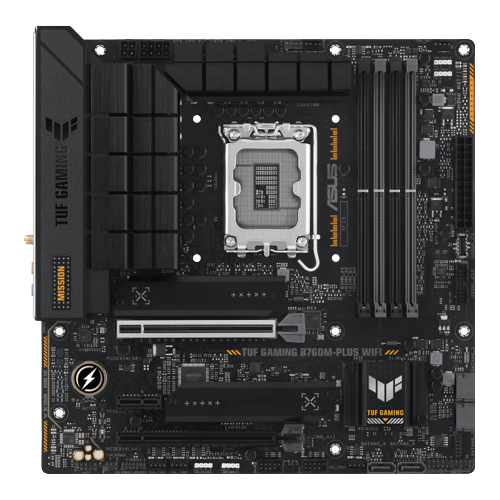

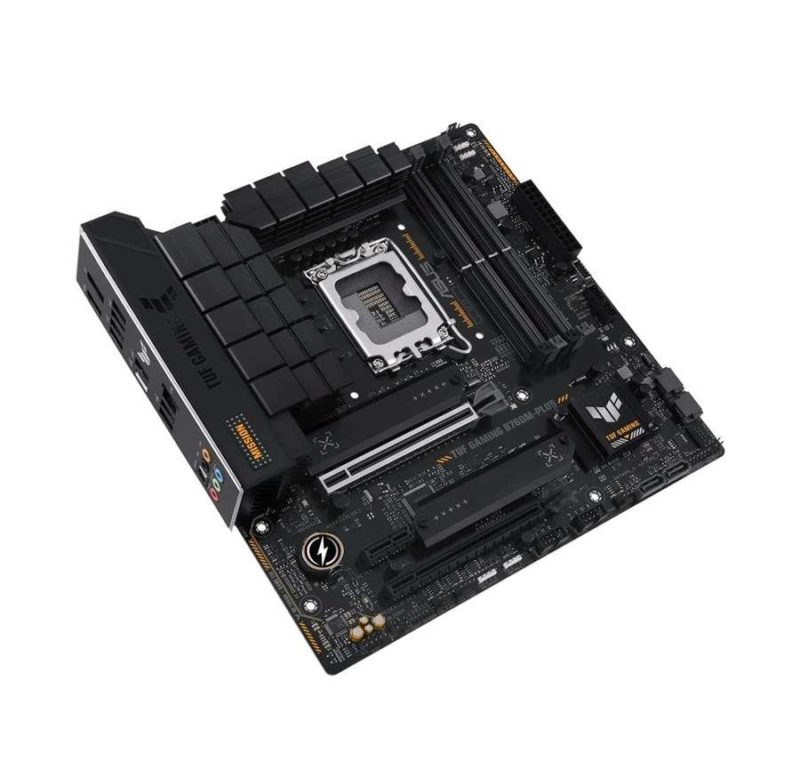

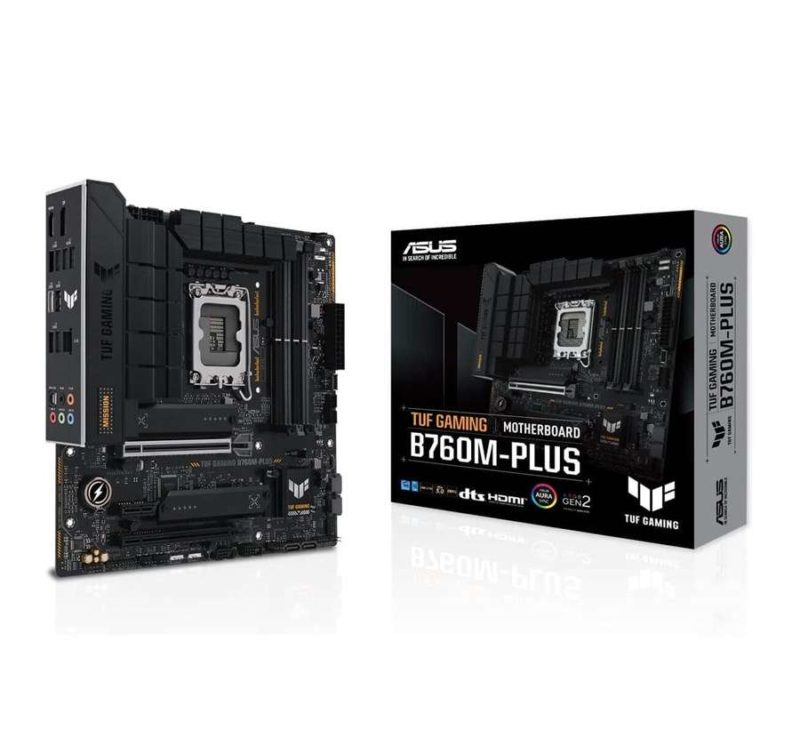

ASUS TUF GAMING B760M-PLUS WIFI LGA 1700 DDR5 Micro-ATX Motherboard

  • 1.Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium® Gold and Celeron Processors
  • 2.Enhanced power solution: 12+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
  • 3.Comprehensive cooling: Enlarged VRM heatsinks, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4
  • 4.Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2×2 Type-C, front panel header for USB 3.2 Gen 2 Type-C® and Thunderbolt (USB4) header support
  • 5.Made for online gaming: Intel® WiFi 6, Realtek 2.5Gb Ethernet, TUF LANGuard
  • 6.Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
  • 7.DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Ad

₨ 66,960

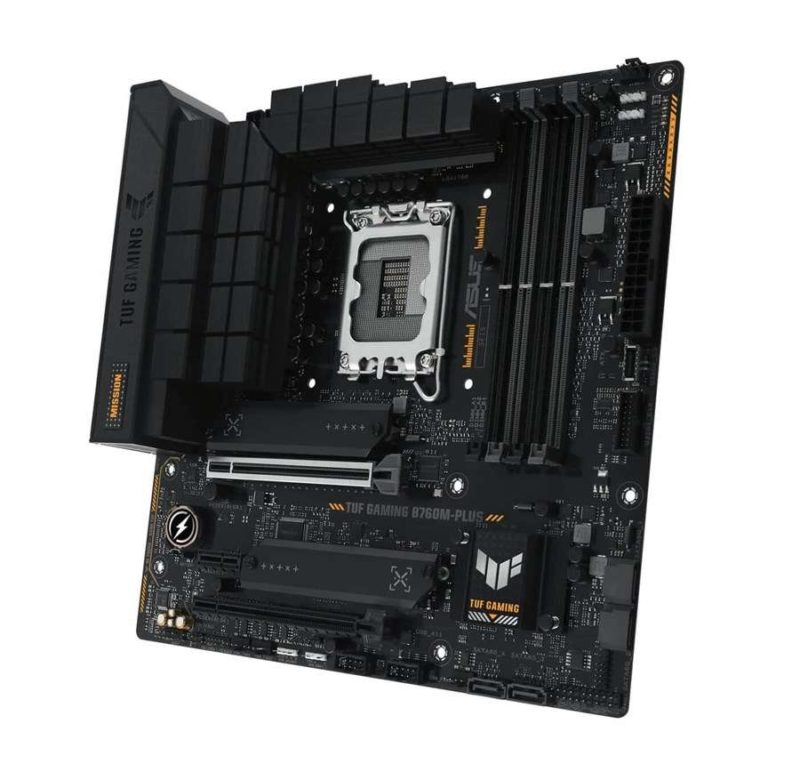

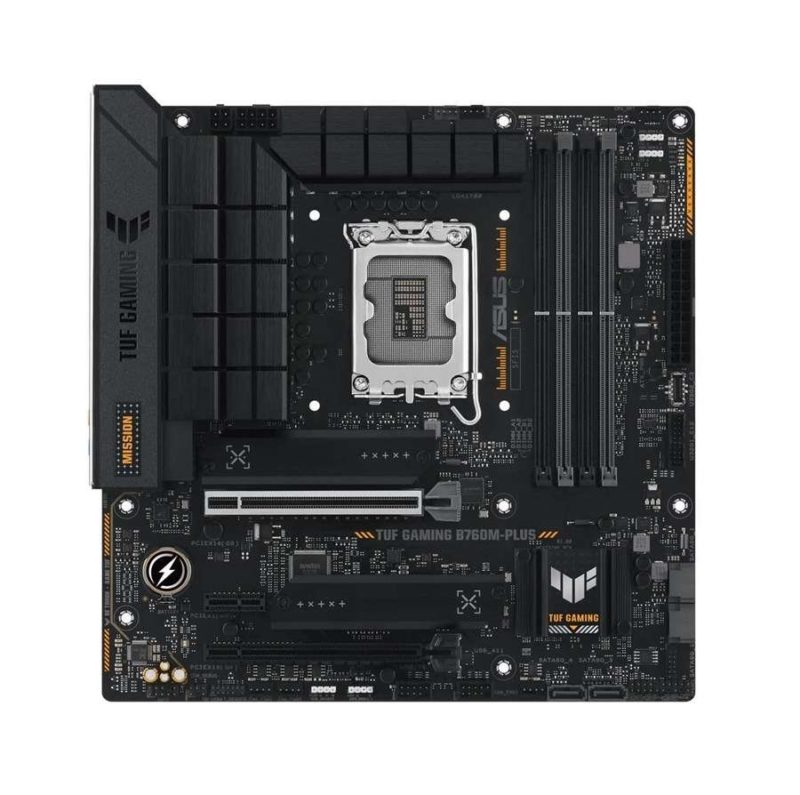

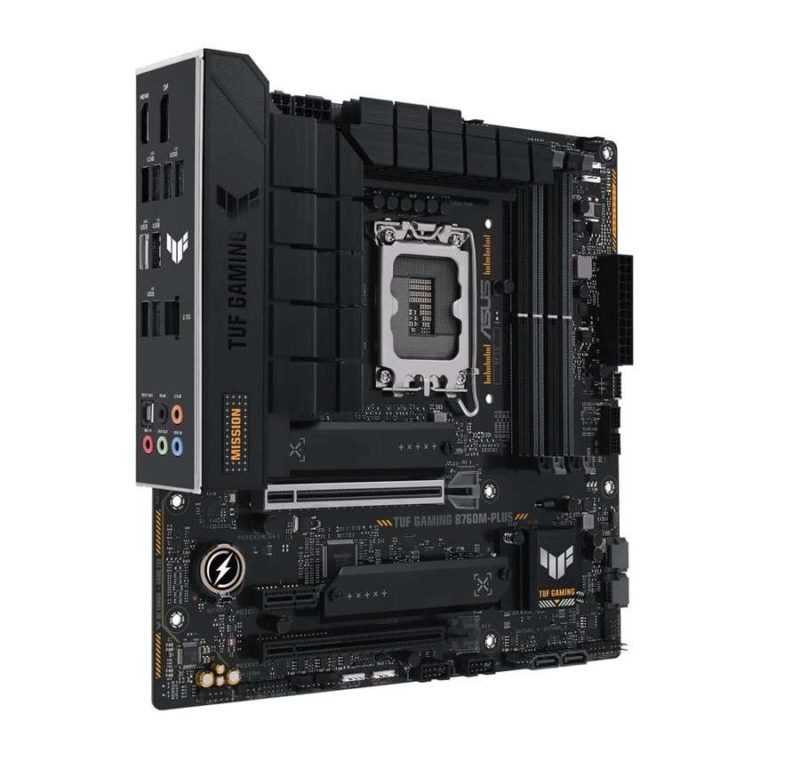

Set the foundation of your gaming-focused PC with the TUF GAMING B760M-PLUS WIFI LGA 1700 Micro-ATX Motherboard from ASUS. Designed for use with Intel’s 12th and 13th Gen processors, this motherboard provides enhanced system-wide functionality by allowing you to install a wide range of components, making this ideal for gaming enthusiasts.

Based off the Intel B760 chipset, you get an LGA1700 socket, four dual-channel DDR5 RAM slots, four SATA III ports, and two M.2 interfaces, all working in tandem to provide enhanced system performance. Connect a variety of graphics and utility cards with PCIe 5.0 x16, PCIe 4.0 x16 (in x4 mode), and PCIe 4.0 x1 expansion slots. USB 3.2 Gen 1, Gen 2, and Gen 2×2 ports allow you to use a wide range of peripherals such as keyboards, mice, external drives, and more. Bluetooth 5.2 technology provides wireless connectivity for devices such as controllers and headphones. Wi-Fi 6 (802.11ax) connectivity allows you to use wireless networking or use the 2.5 Gigabit Ethernet port, both suitable for competitive online gaming. Additionally, the TUF GAMING B760M-PLUS WIFI supports both Windows 10 and 11 (64-bit) right out of the box.

TUF Performance
Constructed with military-grade TUF components, the TUF GAMING B760M-PLUS WIFI uses 12+2 DrMOS power stages, six-layer PCB, ProCool sockets, and Digi+ VRM to provide maximum durability and performance.
Comprehensive Cooling
Gaming for prolonged periods of time can cause heat to build up within your case, so ASUS designed the TUF GAMING B760M-PLUS WIFI to leverage multiple thermal solutions that efficiently dissipate heat. A VRM heat sink, M.2 heat sink, hybrid fan headers, and Fan Xpert 2+ utility software all work together to ensure your components stay cool.

Networking
Whether you prefer wired or wireless networking, the TUF GAMING B760M-PLUS WIFI includes a 2.5 Gigabit Ethernet port and Wi-Fi 6 (802.11ax) wireless capabilities. TUF LANGuard technology ensures you get the strongest wired signal possible with lower latency.

USB Connectivity
Equipped with various ports and headers designed to provide power to external devices, you get USB 3.2 Gen 1 and Gen 2 ports, designed to provide power to resource-demanding peripherals with data transfer speeds up to 5 and 10 Gb/s, respectively. The USB 3.2 Gen 2×2 port boasts up to 20 Gb/s data transfer speeds, allowing you to use advanced devices such as audio and video interfaces. An internal Thunderbolt 4 header enables you to equip your system with an optional Thunderbolt 4 card, unlocking 40 Gb/s transfer speeds, daisy chaining, and additional video-out support.
DIY Friendly
Whether you are a seasoned builder or brand new, the TUF GAMING B760M-PLUS WIFI provides you with several additions that make installation easier. SafeDIMM adds a metal divider on the RAM slots for safer installation of memory modules while Q-DIMM allows you to install memory modules easily with a single locking mechanism. SafeSlot Core+ fortifies your PCIe 5.0 slot with a metal reinforcement for stronger retention designed to support heavier graphics cards. M.2 Q-Latch makes installation and removal of M.2 storage drives quick and easy. Q-LED uses various LEDs that tell you which components are running properly upon startup, making troubleshooting easier in the event of a failure.
Aesthetics
Illuminate your finished product in an array of lighting and effects with integrated RGB headers, allowing you to use a wide range of RGB and ARGB strips. Aura Sync can unify your compatible devices like mice and keyboards to match your rig for a unique theme that fits your style.
7.1 Channel Sound
Immerse yourself deep into your games with Realtek 7.1-channel audio support, delivering a high-quality audio experience. ASUS AI Noise Canceling Mic technology uses an artificial intelligence to filter out unwanted sound so your teammates can hear you clearly with less distractions.

UEFI BIOS
Manage your system and enable overclocking with UEFI BIOS. Advanced mode allows you to fine-tune your system with a wide range of settings and options while EZ mode simplifies the experience. EZ Flash 3 allows you to upgrade your BIOS firmware to the latest iteration by using a USB drive to save and upload the file. The CrashFree BIOS 3 rescue function resets your system in the event of an update failure or corruption.

ASUS Exclusive Software
Included with your TUF GAMING B760M-PLUS WIFI is a suite of exclusive software designed to help you monitor, manage, and overclock your system. You get the ASUS Armoury Crate package with AURA Sync, AURA Creator, and Two-Way AI Noise Cancelation.
SKU: 4711387121344 Categories: ,
CPU
Chipset
Intel B760
CPU Socket
LGA 1700

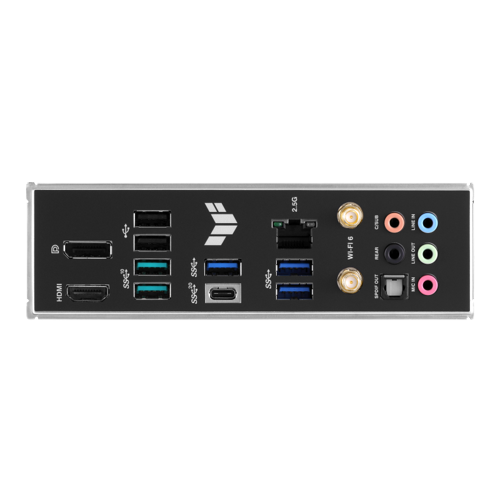

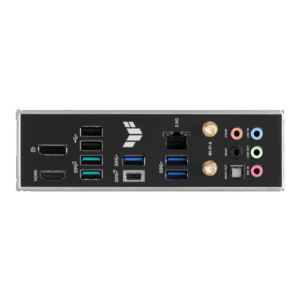

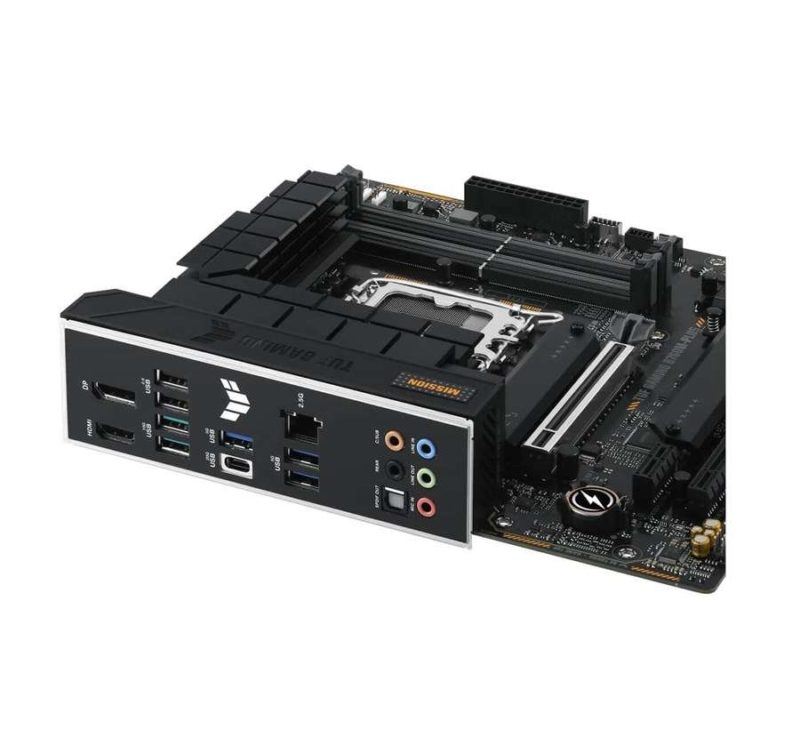

Back Panel I/O
USB
1 x USB-C (USB 3.2 Gen 2×2)
2 x USB-A (USB 3.1/3.2 Gen 2)
3 x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2 x USB-A (USB 2.0)
Thunderbolt
None
Display
1 x HDMI
1 x DisplayPort
Audio
5 x 1/8″ / 3.5 mm
1 x S/PDIF
Ethernet / Controller
1 x Realtek 2.5Gigabit
Wi-Fi Antenna
2 x Connector
Memory
Memory Slots
4 x 288-Pin
Memory Support
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz
Maximum Capacity
192 GB
Channel Architecture
Dual Channel
ECC Support
Non-ECC Unbuffered
Storage Expansion
SATA
4 x SATA III
M.2
2 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
RAID Support
RAID 0, 1, 5, 10 (SATA)
Internal I/O
Expansion Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 mode)
1 x PCIe 4.0 x1
USB
1 x 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2 x 2.0 Header (Supports 4 USB-A Port)
Air Cooling
2 x 4-Pin CPU
3 x 4-Pin System
Liquid Cooling
1 x 4-Pin Pump
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin CPU
1 x 4-Pin CPU
Security
Chassis Intrusion
LED Header
4 x RGB
Audio
None
Diagnostics
Clear CMOS
Add-On
1 x Thunderbolt Header
Legacy
1 x Serial
BIOS
ROM
128 Mb
Front Panel I/O
Front Panel I/O
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
Audio
Audio Codec
Realtek (7.1-Channel)
DAC
None
Wireless
Bluetooth
5.2
Wi-Fi
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with 2 x 2 MU-MIMO Support
Software
OS Compatibility
Windows 10 to 11
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility
Physical
Form Factor
Micro-ATX
Dimensions
9.6 x 9.6″ / 24.4 x 24.4 cm
Packaging Info
Package Weight
3.395 lb
Box Dimensions (LxWxH)
11.2 x 10.8 x 2.7″
