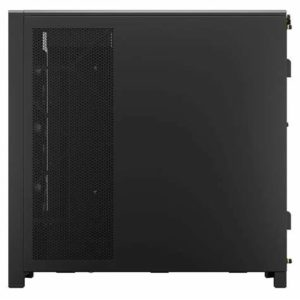

Corsair Frame 5000D RS High-Airflow Mid-Tower Case
₨ 49,000
-
High-airflow mid-tower ATX case with modular design
-
Steel mesh front panel (“3D Y-pattern”) for improved airflow
-
Includes 4× RS140 fans with daisy-chained connections
-
Supports reverse-connector motherboards for cleaner cable layouts
-
Flexible cooling options with top, front, side radiator and fan mounts
- Description
Description
| Feature | Specification / Details |
|---|---|
| Model | Corsair Frame 5000D RS (High-Airflow Mid-Tower) |
| Form Factor | Mid-Tower ATX |
| Exterior Materials | Steel, tempered glass side panel, 3D-Y pattern mesh steel front, plastic accents |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX (up to ~305 × 277 mm) |
| Case Dimensions (H × W × D) | ~ 542 × 250 × 556 mm |
| GPU Clearance | Up to ~ 450 mm |
| CPU Cooler Height Limit | ~ 175 mm |
| Power Supply Max Length | ~ 250 mm |
| Fan & Radiator Support | • Front: up to 3×140mm or 2×200mm, or radiator up to ~360mm • Top: up to 3×140mm, or radiator up to ~420mm • Side: up to 3×140mm, radiator up to ~360mm • Rear: 1×140mm (or 120mm) • Bottom / PSU shroud: provision for additional fans in some variants |
| Included Fans | 4× RS140 PWM fans (with ARGB in some versions) |
| Storage Options | ~ 6× 2.5-inch SSDs + ~ 2× 3.5-inch HDDs |
| Front I/O Ports | 1× USB-C, 4× USB-A, audio in/out jack, power button |
| Expansion Slots | 8 horizontal slots + 3 vertical slots |

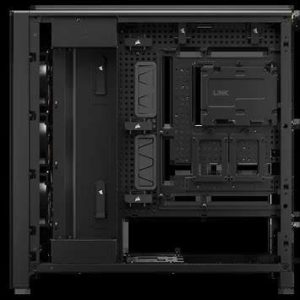

| Cable Management | RapidRoute 2.0 system: pegboard mother-board tray, detachable/rotatable tie-downs, cable looms, ~ 42 mm routing space behind tray |
| Other Features | InfiniRail fan mounting system (slide rails for flexible fan positioning), GPU anti-sag bracket, full dust filtration (front, bottom, left, right) |
