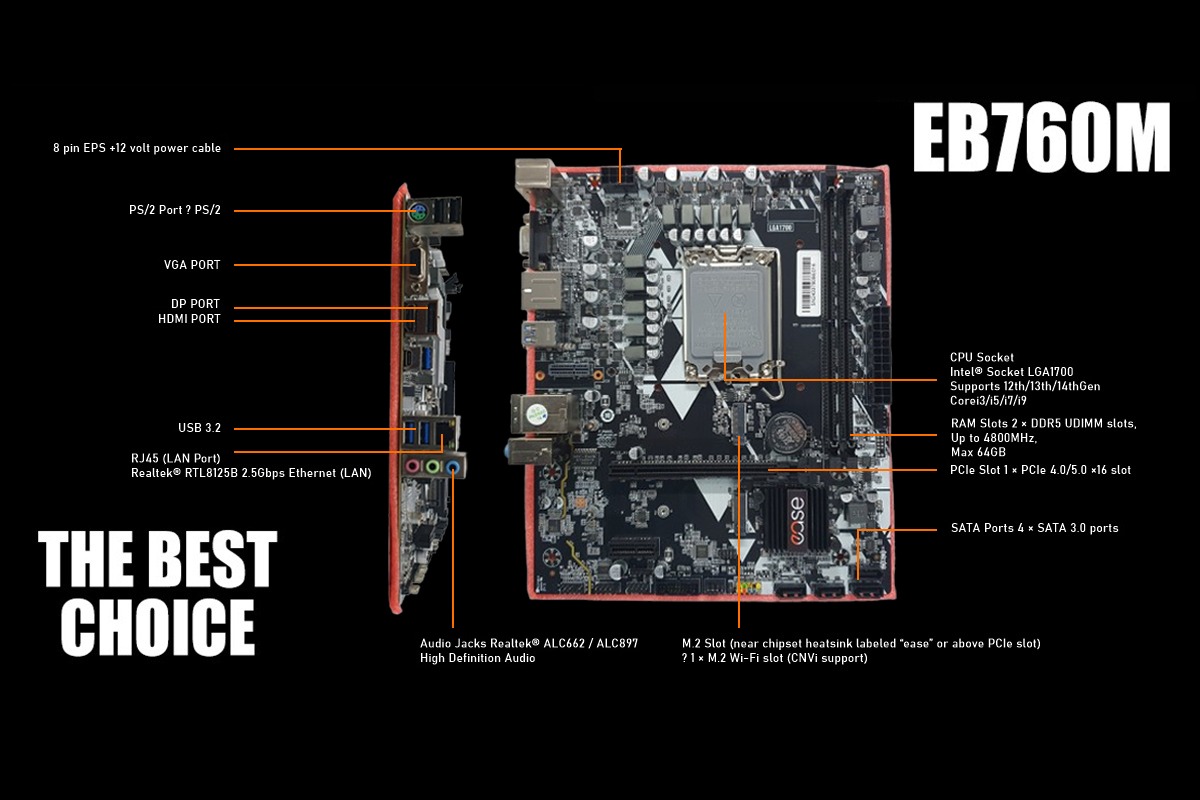

EASE EB760M DDR5 LGA1700 Motherboard

EASE
Add to Wishlist
Compare

– Supports LGA1700 12/13th/14th Gen Intel@ core TMi3/i5/i7/i9/Pentium/Celeron series processors
– Support 2*DDR5 UDIMM Slot 4800MHz, up to 64GB
– Support 4* SATA 3.0 Port 6Gb/s
– Realtek® RTL8125B 2500Mbps | Optional Realtek® RTL8111H 1000Mbps
– Support 6 Channel Audio Input/Audio Output/Mic

₨ 32,200

Ad
Compare
EASE EMB610DA DDR4 LGA1700 Motherboard
EMB610DA - The Best Choice
EASE EMB610DA LGA 1700 Desc Img 1
  • Solid Pin Power Connector
  • 6+1+1 Phase Hybrid Power Design
  • Support 12th / 13th Gen Intel@ Core Processors
  • Supports 2*DDR4 UDIMM Slot
  • Support 3*SATA 3.0 Ports
EMB610DA - The Best Choice
EASE EMB610DA LGA 1700 Desc Img 1
6+1+1 Phase Hybrid Power Design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
  • 6+1+1 Phases Low RDS(on) MOSFETs
  • Solid capacitors to improve transient response and minimize oscillation.
  • 8-pin Solid Pin CPU Power Connector.
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
  • 6+1+1 Phases Low RDS(on) MOSFETs
  • Solid capacitors to improve transient response and minimize oscillation.
  • 8-pin Solid Pin CPU Power Connector.
6+1+1 Phase Hybrid Power Design
Memory Slots
Support 2*DDR4 UDIMM Slot 3200MHz, up to 64GB
Slot Signal Stability
The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.
Memory Slots
Support 2*DDR4 UDIMM Slot 3200MHz, up to 64GB
Slot Signal Stability
The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.
EASE LAN with Bandwidth Management

Product Catalogue

Download
SKU: EB760M Category:
Brand

Brand Ease
 Model EB760B
Processor Support for 12/13th/14th Gen Intel®Core™ i9/i7/i5/i3 processors in the LGA1700 Package.
Chipset Intel® B760 Chipset
Memory 2*DDR5 UDIMM slot 4800MHz MAX 64GB
LAN Realtek® RTL8125B 2500Mbps Optional Realtek® RTL8111H 1000Mbps
Audio support Realtek® ALC662 High Definition Audio Optional Realtek® ALC897 High Definition Audio
Storage Interface 4 SATA 3.0
 2*M.2_SSD port（support2242/2280) support NVMe signal
Back Panel I/O 1* PS/2+2*USB2.0 port
1* VGA port colay HDMI port
 1* USB3.2 Gen2 port
 2* USB3.2 Gen1 port
 1* AUDIO_JACK(LINE_IN/LINE_OUT/MIC_IN)
 1* RJ45 port
1* M.2_WIFI 1* HDMI+DP port 1* TYPE_C port
On-Board Connectors 1* F_AUDIO connector ∟support 2*USB3.0 port 1* ESPI connector
1* COM connector 3* F_USB2.0 connector ∟support 3*USB2.0 port 1* F_USB3.0 connector
1* TPM connector 1* ATX_24P connector 1* ATX_8P connector
1* CLR_CMOS connector
Slots  1* PCIe 4.0/5.0 X16 slot 1* PCIe 3.0 X1 slot
1* M.2_WIFI support CNVi
Form Factor Micro-ATX(19cm x 23cm)
