Ease EH510M E DDR4 Motherboard
₨ 18,000
-
Intel® H510 chipset motherboard with LGA1200 socket support
-
Compatible with 10th Gen Intel® Core™, Pentium® Gold & Celeron® CPUs
-
Dual-channel DDR4 memory support up to 2400 MHz
-
Integrated Intel® HD Graphics with HDMI & VGA output
-
Dual M.2 slots and SATA 6Gb/s storage support
-
Reliable Realtek LAN and 6-channel HD audio
-
Compact PCB size ideal for space-efficient builds
- Description
Description

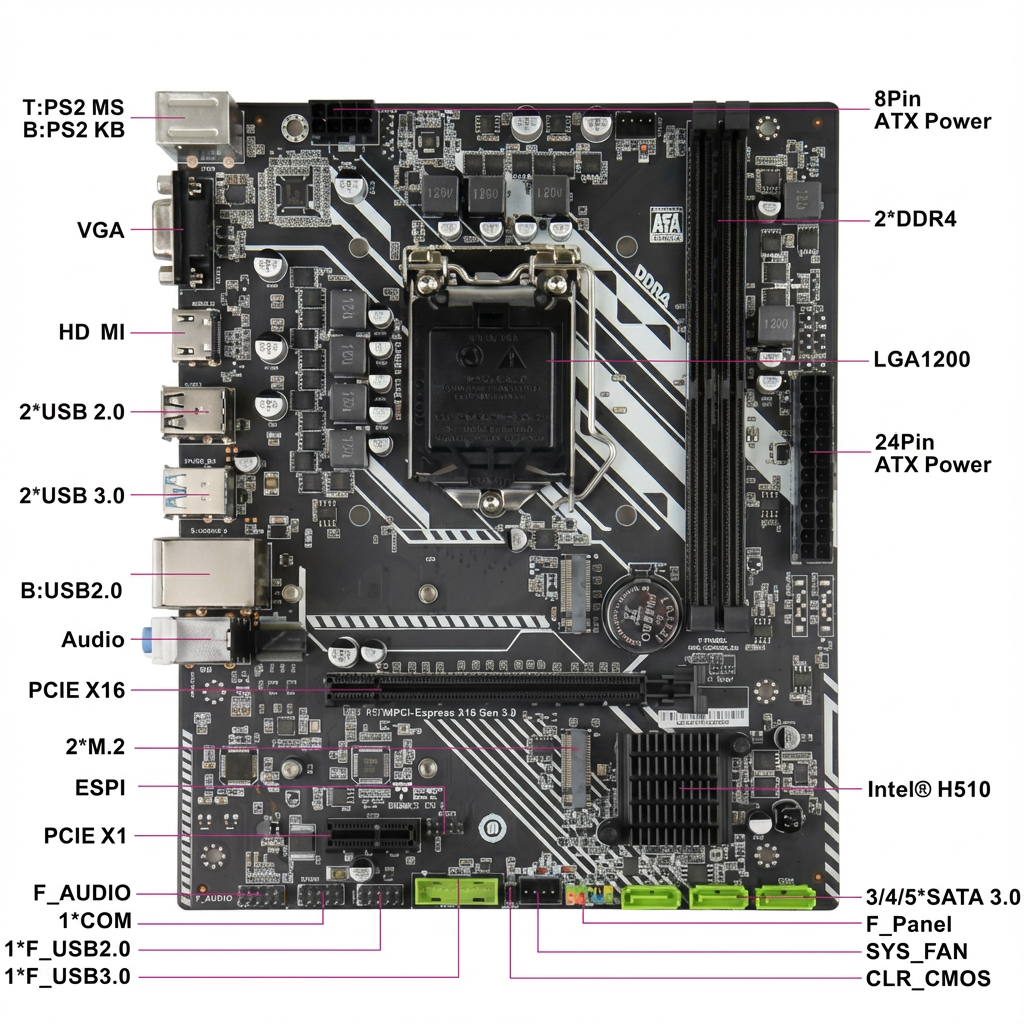

| Category | Specification |
|---|---|
| CPU | Supports Intel® Socket LGA1200 for 10th Gen Intel® Core™, Pentium® Gold, and Celeron® processors |
| Chipset | Intel® H510 Chipset |
| Memory | 2 × DDR4 DIMM slots, supports 2133 / 2400 MHz, Dual Channel architecture |
| Display | Integrated Intel® HD Graphics, supports HDMI & VGA output |
| Storage | 2 × M.2 sockets (supports 2260 / 2280 SSDs), 3 × SATA 6Gb/s ports |
| Network | Realtek LAN chip, 1 × 100 Mbps Ethernet (Optional 1 Gbps) |
| Audio | Realtek ALC662, 6-channel high-definition audio |
| Expansion Slots | 1 × PCIe 3.0/2.0 x16 slot, 1 × PCIe 3.0/2.0 x1 slot |
| Rear I/O | 1 × PS/2 Keyboard & Mouse port, 1 × VGA port, 1 × HDMI port, 1 × LAN (RJ45) port, 2 × USB 3.1 Gen 1 ports, 4 × USB 2.0 ports, 3 × audio jacks |
| Front I/O | USB 3.1 Gen 1 header (supports 2 ports), USB 2.0 header (supports 2 ports), Front panel audio header, System panel header |
| Support System | Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| BIOS | Standard UEFI BIOS |
| PCB Size | 220 × 179 mm |
