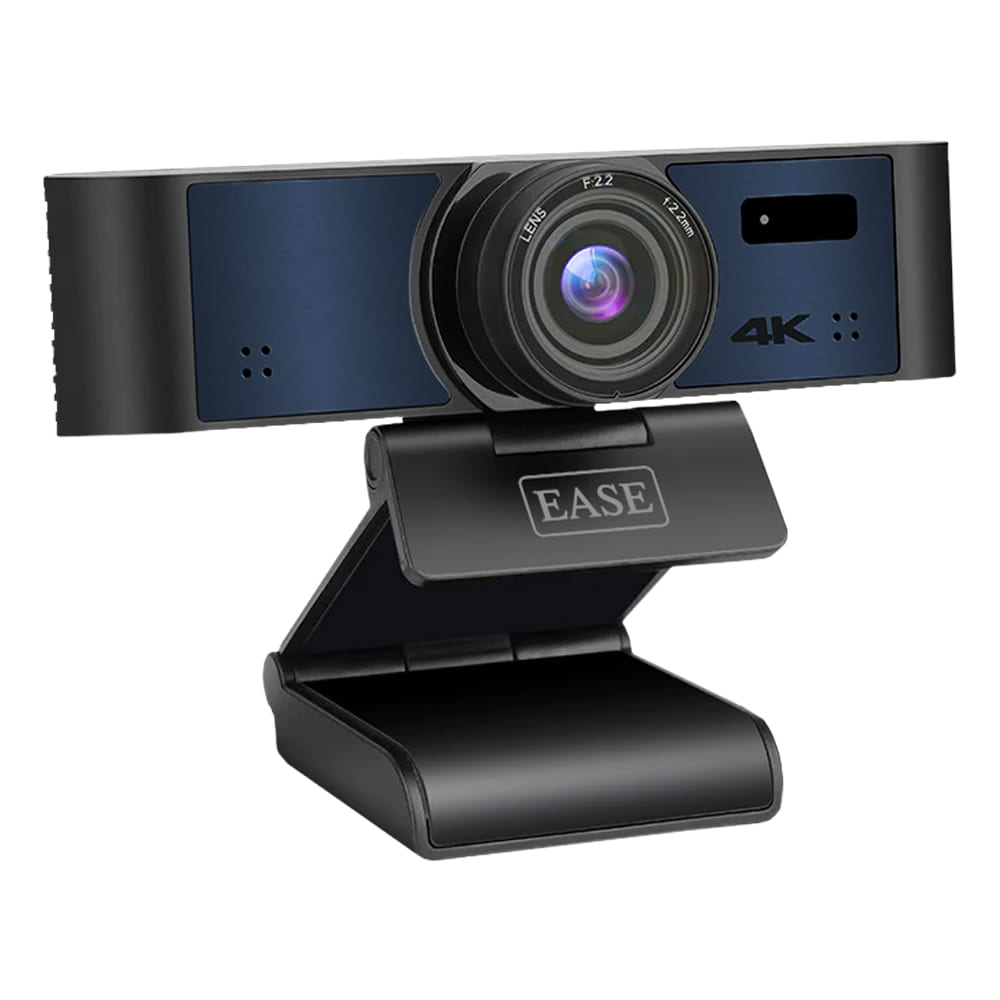

EASE ePTZ4K High-Quality Video Conferencing Cam

• Description
• Specification

• Description
• Specification

Brand	EASE

Product Specifications:

1. Camera

Sensor: 1/2.5 inches, CMOS, Effective Pixels 829 Megapixels

Scanning Mode: Progressive

Type of Lens Mount: M12

Lens I: Focal length: f-2.2mm, FOV: 120°
Lens II: Focal length: f-3.5mm, Horizontal FOV: 84° Auto focus

Minimum Ilumination: 05 Lux @(F1.8, AGC ON)

Shutter: 1/30s 1/10000s

White Balance: Auto, Indoor, Outdoor, One Push Manual, VAR

Camera Stand: The standard configuration includes a damping rotary support

Digital Nose Reduction: 2D & 3D Digital Noise Reduction

Backlight Compensation: Support

Interface: USB Interface  1x USB 3.0, type C

IR Remote Control: Support

     2. USB Features

Operating System Supported: Windows 7 (only 1080p and below are supported) Windows 8.1, Windows 10 or higher versions macOS 10.10 or higher versions Google Chromebook™ Version 76.0.380 9.136 or higher versions Linux (support for UVC needed) Android

Hardware Requirements: 4 GHz Intel Core 2 Duo CPU or higher 2 GB or larger memory USB 2.0 (USB 3.0 required for 4K)

Color System/Compression: H.264/MPEG/YUY2/NV121

Signal System: 4K/30,4K/25, 1080p/30, 1080p/25, 720p/30,720p/25, 960x540p/30, 960x540p/25, 640x360p/30, 640x360p/25, etc.

USB Video Communication Protocol: UVC 1.1

UVC PTZ Control: UVC Support (EPTZ) 1.1

3. General Specifications

Input Voltage: SV (USB Power Only)

Input Current: 600mA

Operating Temperature: 10°C-40°C

Storage Temperature: -40°C-60°C

Power Consumption: 3.0W (Max)

Dimensions: 118mmx37.2mm x 30.8mm
