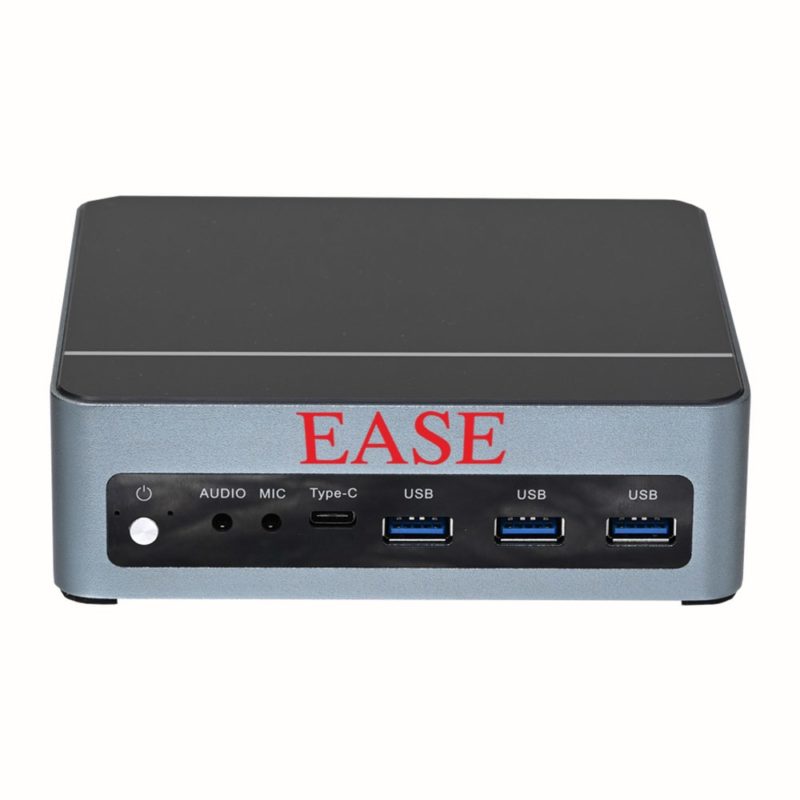

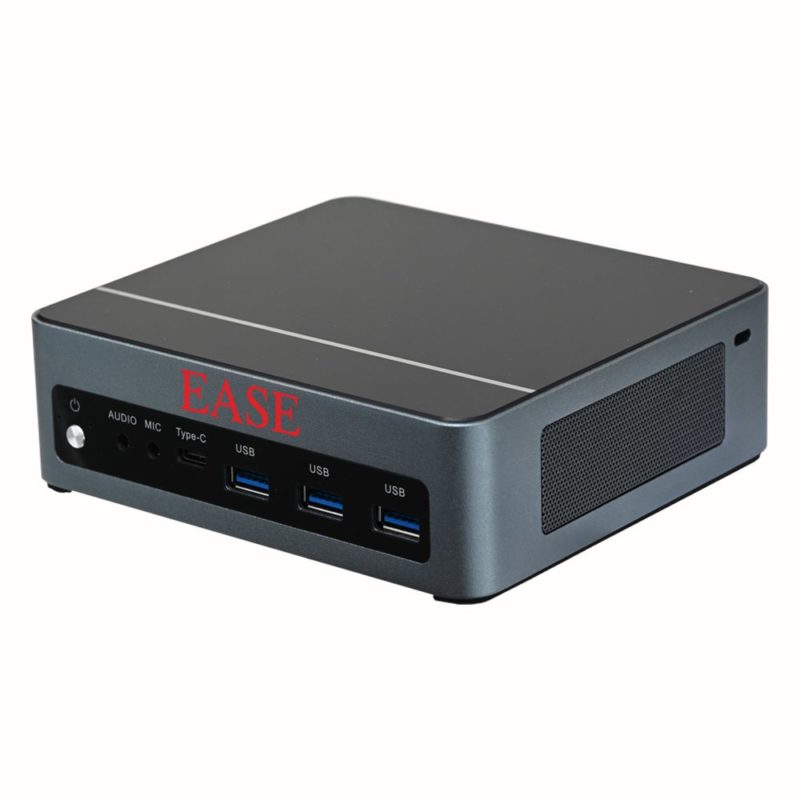

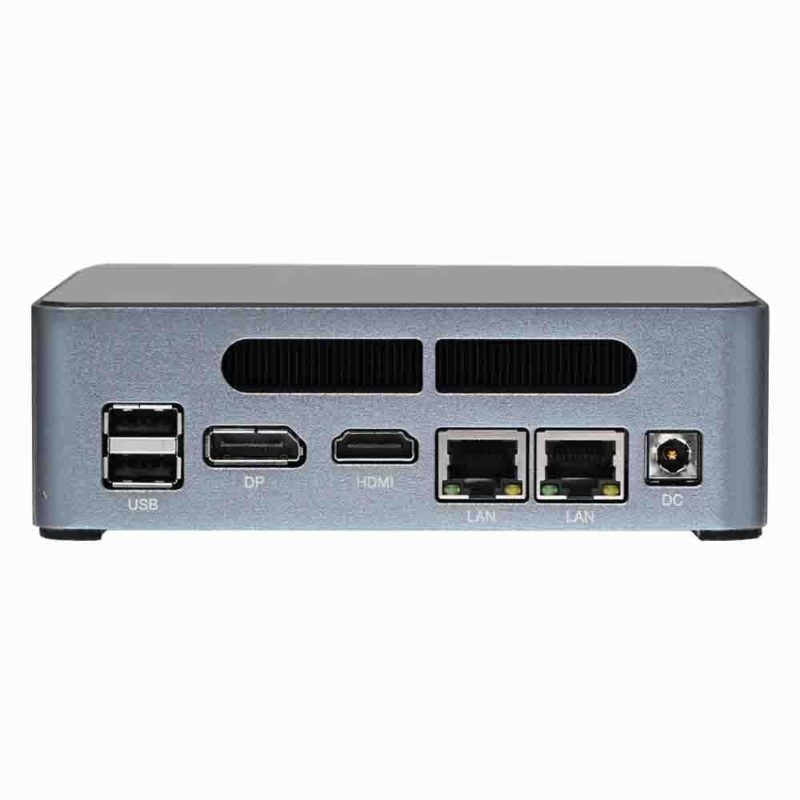

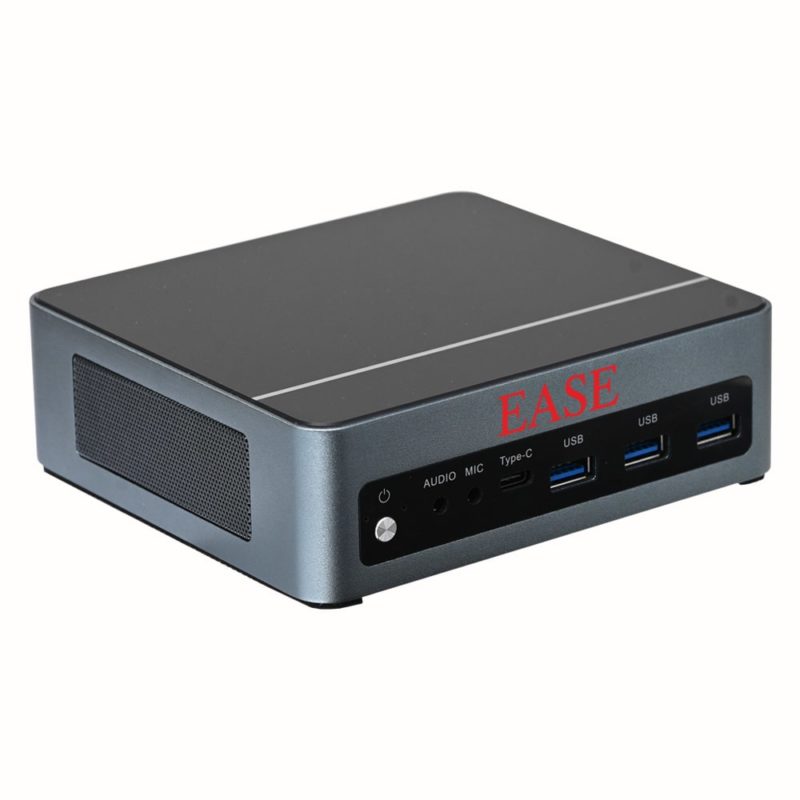

EASE Mini PC EMi713G Core i7-1360P 2.2GHz up to 5.0GHz

Availability:

Arriving Soon

– Newest 13th Gen Intel Core i7 Processor.
– 2 DDR5 memory slot up to 64GB.
– Support Three Display: HDMI2.0 + DP 1.4 + USB Type-C.
– Support 2 x M.2 NVME SSD (SSD1 supports M.2 SATA).
– Low consumption TDP only 28W and can be mounted on the wall.
– Support Wake on Lan, Auto Power On, RTC and PXE.
-High speed ddr5
-Energy saver
-Performance like notebook

Ad

Introducing the Mini PC powered by the Intel Raptor Lake Core i7-1360P processor, a compact yet powerful computing solution for your needs. With a base clock speed of 2.2GHz and Turbo Boost Technology that can push it up to an impressive 5.0GHz, this Mini PC delivers exceptional performance for demanding tasks.

The Core i7-1360P features 12 cores and 16 threads, allowing for seamless multitasking and smooth performance even with multiple applications running simultaneously. The 18MB cache ensures quick access to frequently used data, further enhancing responsiveness.

Despite its high performance, the Core i7-1360P maintains a low thermal design power (TDP) of 28W, making it energy-efficient and suitable for use in small form factor systems like Mini PCs. This ensures that you get powerful performance without compromising on energy efficiency.

The Mini PC also features Intel Iris Xe Graphics, providing excellent visual performance for tasks such as gaming, video editing, and graphic design. The integrated graphics deliver stunning visuals and smooth playback of high-definition content, enhancing your overall computing experience.

With its compact size and powerful performance, the Mini PC powered by the Intel Raptor Lake Core i7-1360P processor is the perfect choice for users who need a high-performance computing solution in a small form factor.

SKU: EMi713G Categories: ,
Basic Information
CPU  Onboard Intel Raptor Lake Core i7-1360P 2.2GHz up to 5.0GHz(Turbo boost Technology) 12 Core 16 Threads 18MB cache 28W TDP Intel® Iris® Xe Graphics eligible.
TDP 28W
Chipset Raptor Lake
Memory 2 x SO-DIMM DDR5 Slot, up to 64GB
OS Windows10/11/Linux
PXE Yes
Network 2 x Realtek RTL8111H Gigabit Ethernet Controller
10/100Mbps/1000Mbps BaseT LAN
Video Intel Iris Xe Graphics
Input/Output port
Switch 1 x Power On/Off Switch
Power DC+12V~19V
USB 3 x USB3.2，2 x USB2.0，1 x USB Type-C
Display 1 x HDMI 2.0，1 x DP 1.4，1 x USB Type-C
LAN 1 x 2.5G RJ45 Giga Lan
Audio 1 x SPK, 1 x MIC
Storage
M.2 2 x M.2 slot for NVME SSD (SSD1 supports M.2 SATA)
Wi-Fi
Module 1 x M.2 slot for Wi-Fi module
Antenna 2 x inner RF cables and without antenna
Power and Working Environment
Input DC 100-240V AC/50-60Hz
Output DC +12V~+19V.
Operating Temperature -20/+60 Centigrade
Storage Temperature -30/+70 Centigrade
Relative Humidity 10%~90% @30°C (non-condensing)
Product Dimension & Details
Size 138x 126 x 44mm
Weight 1.5kg
Shell Metal Grey Color Aluminum Alloy ABS
Cooling Mode All-copper turbo fan
Functions Wake on Lan, Auto Power On, RTC, PXE
Package Content
Standard 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
Optional 1xHDMI cable, 1xUser Manual
