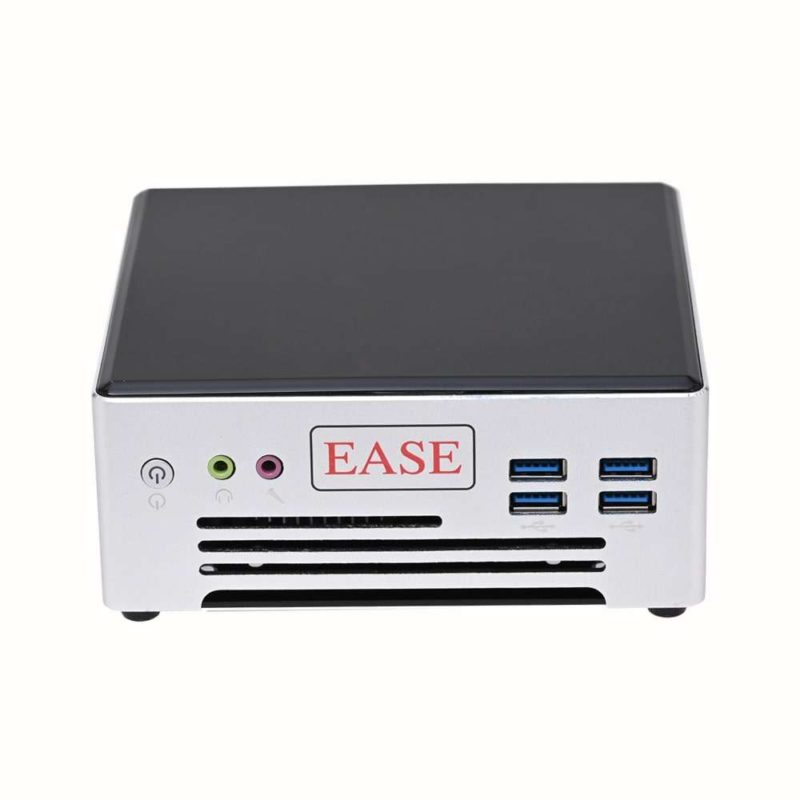

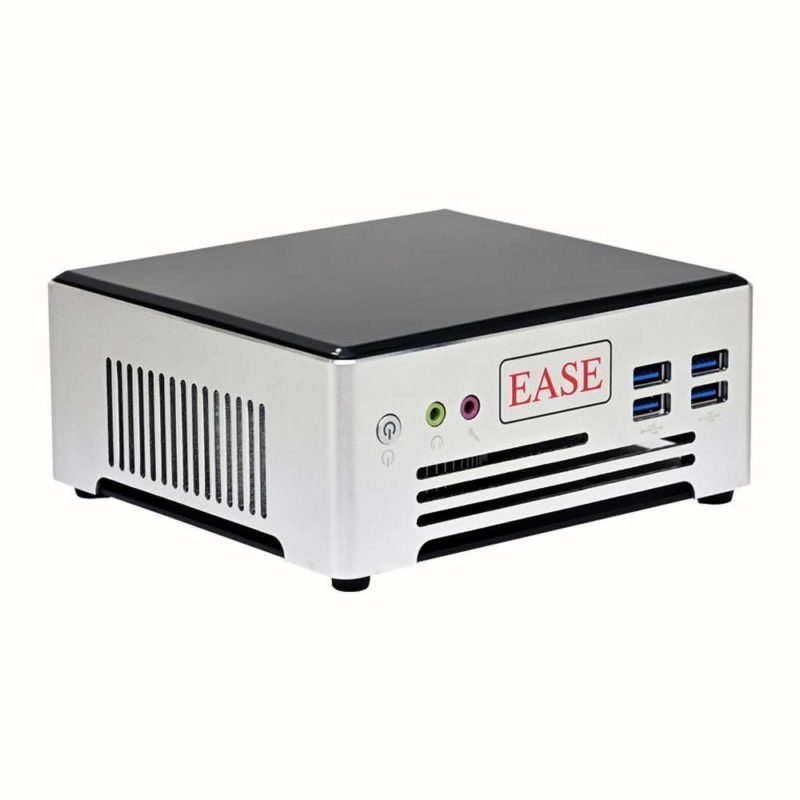

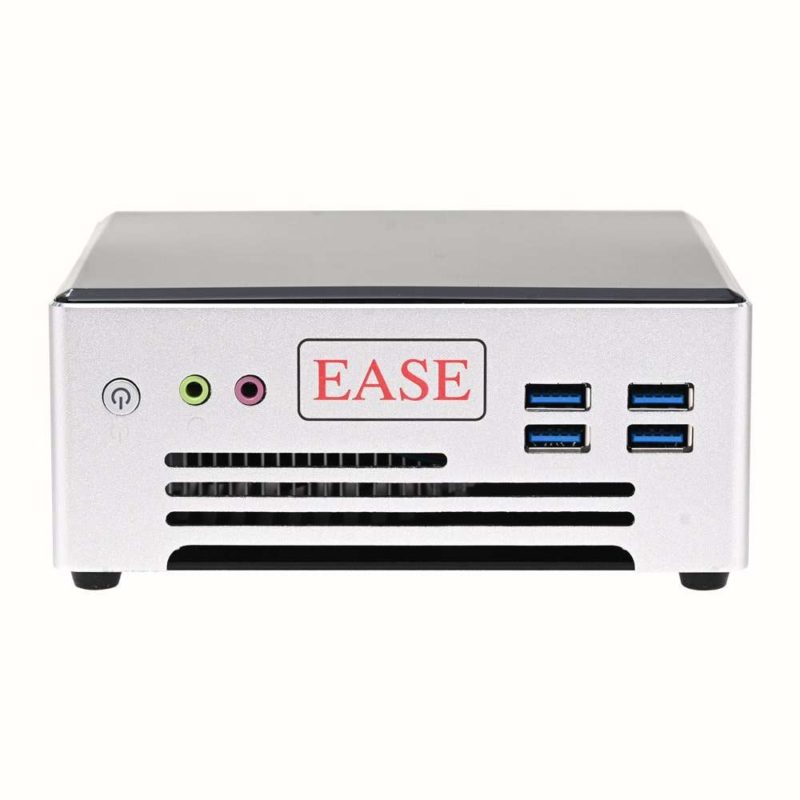

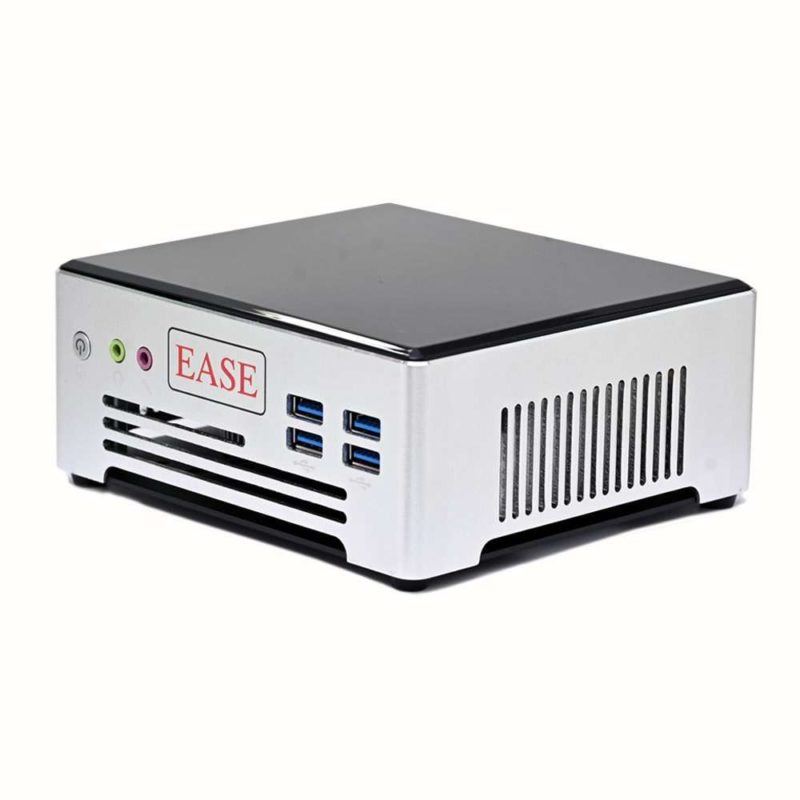

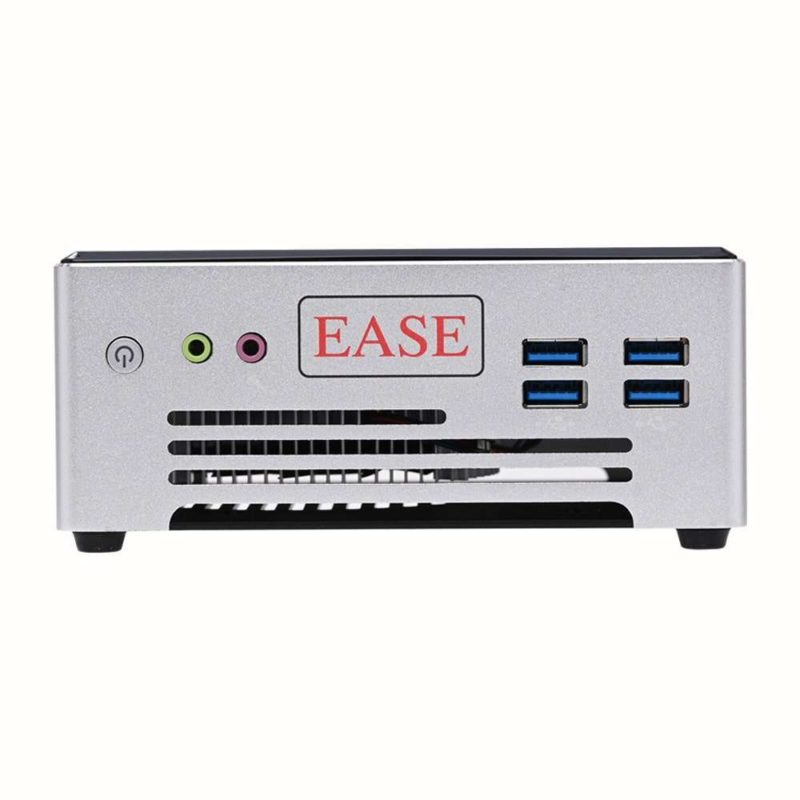

EASE Mini PC Intel Core i5-1145G7 Supports Up to 64GB DDR4-3200



  • Space-saving design: can be fixed to the back of a monitor with supplied mount screws
  • Powerful performance in a compact form factor
  • Rich interfaces: USB, DP, HDMI, 2 LAN, MIC, SPK, etc. for connecting more devices
  • Ultra-quiet aluminum cooling fan for efficient heat dissipation
  • 2x SODIMM DDR4 memory slots with up to 64GB for fast performance
  • Versatile use-cases: office, school, bank, supermarket, service center, hospital, POS, HTPC, CCTV, etc.

 83,835  93,150

The EASE Mini PC 1145G7 is a compact, powerful, and cost-effective solution for all your computing needs. This mini-PC is equipped with an onboard 11th generation 10nm CPU Comet Lake Intel Core i5-1145G7, featuring 4 cores and 8 threads. With a base clock speed of 2.4GHz, the CPU can reach up to 4.2GHz with a 6MB cache and TDP of just 12W, making it a highly efficient and powerful solution for a variety of applications.

The mini-PC features a 140 x 130 mm custom-sized motherboard and is equipped with Intel Xeon E3 – 1200 v6/7th Gen Intel Core/DRAM Registers, ensuring top-notch performance and reliability. It also features 2 x SO-DIMM DDR4 memory slots, which support up to 64GB of memory for fast and efficient performance.

The EASE Mini PC 1145G7 is compatible with both Windows 10 and Linux operating systems, and features Intel High-Definition Audio Controller for superior audio quality. With 2 onboard Realtek RTL8168/8111/8112 Gigabit Ethernet Controller, the mini-PC also offers reliable and fast network connectivity with 10/100Mbps/1000Mbps BaseT LAN.

In terms of connectivity, the mini-PC features 1 x M.2 NGFF 2230 slot for a Wi-Fi (Built in Wi-Fi) and Bluetooth module, along with 2 inner RF cables, making it easy to add wireless connectivity to your setup.

The EASE Mini PC 1145G7 is designed to be energy efficient, with an input range of 100-240V AC/50-60Hz and a DC output of +12V to +19V, with a recommendation of 12V/5A (19V/4.74A can be added for an extra cost). The operating temperature range is 0 to 70°C, and the relative humidity range is 10% to 85%.

In conclusion, the EASE Mini PC 1145G7 is a compact, powerful, and cost-effective solution for all your computing needs. With its advanced features, efficient performance, and versatility, this mini-PC is perfect for home, office, and entertainment applications.

SKU: E1135 Categories: , ,

CPU: Onboard 11th Gen 10nm CPU Comet Lake Intel Core i5-1145G7 4 cores 8 threads 2.4GHz up to 4.2GHz 6MB cache TDP 12W Intel Iris Xe Graphics


Basic Information

CPU Onboard Intel Core i5-1035G4 / i7-1065G7 / i7-1165G7 / i3-1135G7
TDP Refer to the above CPU
Level 2 Cache Depend on CPU
Motherboard 140 * 130 mm customized size
Chipset Intel Xeon E3 – 1200 v6/7th Gen Intel Core / DRAM Registers – 5910 – 100 Series/C230 Series
Memory 2 x SO-DIMM DDR4 Slot

Support 4GB/8GB/16GB/32GB/64GB

DDR4-2400, LPDDR3-2133, DDR3L-1600

OS Windows 10/Linux
Audio Intel High-Definition Audio Controller
Network 2 x Onboard Realtek RTL8168/8111/8112 Gigabit Ethernet Controller

10/100Mbps/1000Mbps BaseT LAN

Video Refer to the above CPU.



Module 1 x M.2 NGFF 2230 slot for Wi-Fi(Built in Wi-Fi) & Bluetooth module.
Antenna 2 x inner RF cables and without external antenna


Power and Working Environment:

Input 100-240V AC/50-60Hz
Output DC +12V~+19V, recommend 12V/5A default (add extra cost to get 19V/4.74A)
Operating Temperature 0/70 Centigrade
Relative Humidity 10% ~ 85%

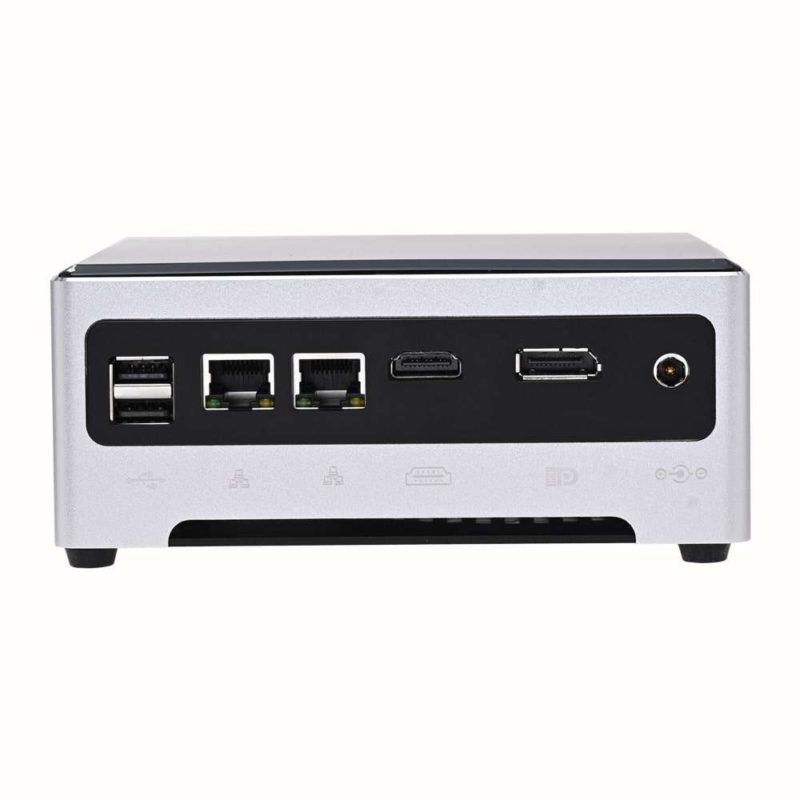

Input/Output Port:

Switch 1x Power On/Off Switch
Power 1x Power in
USB 6x USB 3.0
Display 1 x DP1.2, 1 x HDMI1.4, support 4K@30Hz!
LAN 2 x RJ45 Giga LAN
Audio 1 x MIC, 1 x SPK



M.2 1 x M.2 slot for M.2 NGFF 22*80(Key M), up to 2TB(NVME/SATA)
MSATA 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s


Product Dimension & Details:

Size 137*150*61mm
Weight Net 0.9kg, Gross 1.4kg
Shell Black color PVP top and Silver aluminum alloy body
Cooling Mode An ultra-quiet aluminum cooling fan
Functions PXE, Power On AC, RTC


Package Content:

Standard 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
Optional 1xHDMI cable, 1xUser Manual
