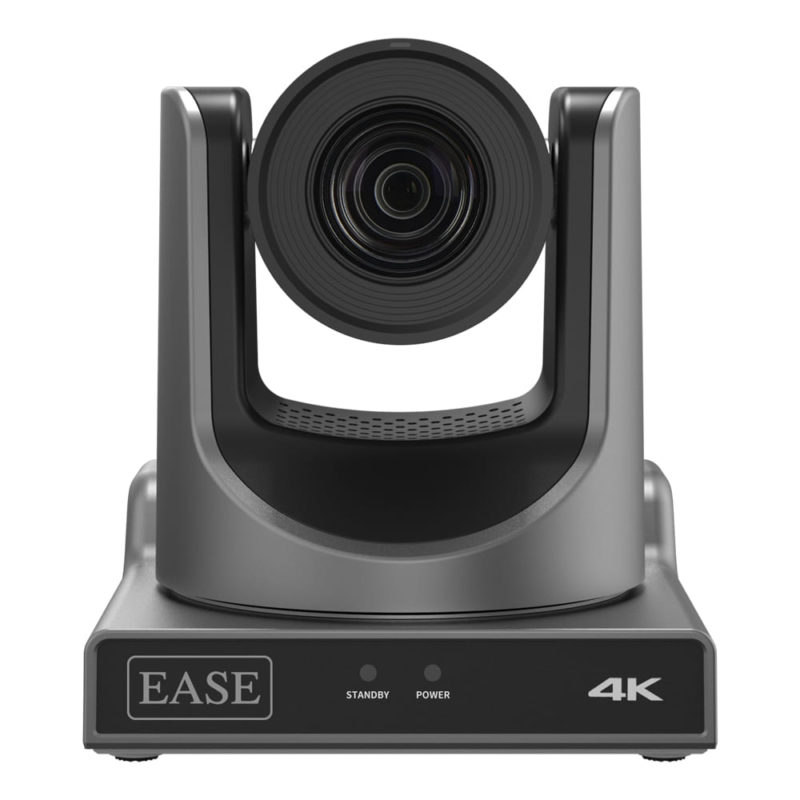

EASE PTZ 12X 4K30P Professional PTZ Camera

EASE
Add to Wishlist
Compare
  • 4K UHD resolution for exceptional image clarity
  • Multiple interfaces including NDI®|HX2 for integration into professional video systems
  • 12x optical zoom and 80.8° wide-angle lens for versatile shooting options
  • HDMI 1.4b for high-quality video output
  • Low illumination capability for improved performance in low-light environments
  • Remote control for easy operation and adjustment
  • Local storage for convenient recording and playback
  • Low power sleep mode for energy efficiency
  • Smart exposure for optimized image quality.

₨ 270,000

Ad
Compare
EASE PTZ 12X 4K30P Professional PTZ Camera
4K-level Image Quality
Equipped with the new generation 4K CMOS sensor with a  maximum of 8.51 million pixels can realize 4K (3840×2160)  ultra-high-resolution high-quality images. And downward  compatible with 1080p, 720p and other resolutions.
4K-level Image Quality
Equipped with the new generation 4K CMOS sensor with a  maximum of 8.51 million pixels can realize 4K (3840×2160)  ultra-high-resolution high-quality images. And downward  compatible with 1080p, 720p and other resolutions.
12X Optical Zoom + 80.8 ° Wide-angle Lens
  • It adopts 4K ultra long focal lens with high quality and 8  million ultra-high resolution, 12x optical zoom, and the  maximum field angle is 80.8° .
12X Optical Zoom + 80.8 ° Wide-angle Lens
  • It adopts 4K ultra long focal lens with high quality and 8  million ultra-high resolution, 12x optical zoom, and the  maximum field angle is 80.8° .
12x Optical Zoom
  • Equipped with an 80.8° wide-angle lens, this camera features 12x optical zoom and 16x digital zoom, enabling clear capture of
    details both near and far in the conference room with no distortion at the edges of the image.
12x Optical Zoom
Equipped with an 80.8° wide-angle lens, this camera features 12x optical zoom and 16x digital zoom, enabling clear capture of details both near and far in the conference room with no distortion at the edges of the image.
EASE PTZ12X4K Desc Img 2
Ultra-High Signal-To-Noise Ratio
  • The application of 3D noise reduction algorithm greatly  reduces image noise. Even under the condition of ultra-low  illumination, it still keep the picture clean and clear, and the  SNR of image is as high as 55dB.
Ultra-High Signal-To-Noise Ratio
The application of 3D noise reduction algorithm greatly  reduces image noise. Even under the condition of ultra-low  illumination, it still keep the picture clean and clear, and the  SNR of image is as high as 55dB.
EASE PTZ12X4K Desc Img 3
SKU: PTZ12X4K Categories: , , ,
Brand

Product Specifications

Camera:-

Signal System: HDMI: 4K/30, 4K/29.97, 4K/25; 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 750p/50; 3G-SDI: 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94 Sensor: 1/2.5 inches, CMOS, Effective Pixels: 8.51 Megapixels Scanning Mode: Progressive Focal length: 12x, f = 3.47mm ~41.65mm, F 1.84 ~ F3.72 Digital Zoom: 16x Minimum Illumination: 0.5 Lux @ (F1.8, AGC ON) Shutter:  1/30s ~ 1/10000s White Balance: Auto, Indoor, Outdoor, One Push, Manual, VAR Backlight Compensation:  Support Digital Noise Reduction:  3D Digital Noise Reduction SNR: ≥ 55dB Horizontal FOV: 80.8° ~ 7.5° Vertical FOV: 34.1° ~ 1.89° Pan Angle: ±170° Tilt Angle: -30° ~ +90° Pan Speed: 1.7° ~ 100° /s Tilt Speed: 1.7° ~ 69.9° /s Image Flip: Support Image Freeze: Support Preset Position: 255 Preset Accuracy: 0.1°

General Specifications:-

Input Voltage: DC 12V/PoE+（802.3at） Input Current: 1.5A (Max.) Storage Temperature: -40 ~ 60° C Operating Temperature: -10 ~ 40° C Power Consumption: 13W (Max.) Dimensions: 169mm x 142mm x 175mm Net Weight: 1.6Kg

Network Features:-

First Stream Resolution: 1920x1080, 1280x720, 1024x576 etc. Second Stream Resolution: 3840x2160, 1920x1080, 1280x720, 1024x576 etc. Video Compression: H.264 / MJPEG / H.265 Video Stream: First Stream, Second Stream Video Bit Rate:  First Stream: 32kbps~51200kbps Second Stream: 32kbps~20480kbps Bit Rate Control: VBR, CBR Frame Rate:  50Hz: 1fps~50fps, 60Hz:1fps~60fps Audio Compression:  AAC, G711A Audio Bit Rate: 96Kbps, 128Kbps Protocols: NDI®|HX2, SRT, TCP/IP, HTTP, RTSP, RTMP/ RTMPS, Onvif, DHCP, Multicast, GB/T 28181, etc.

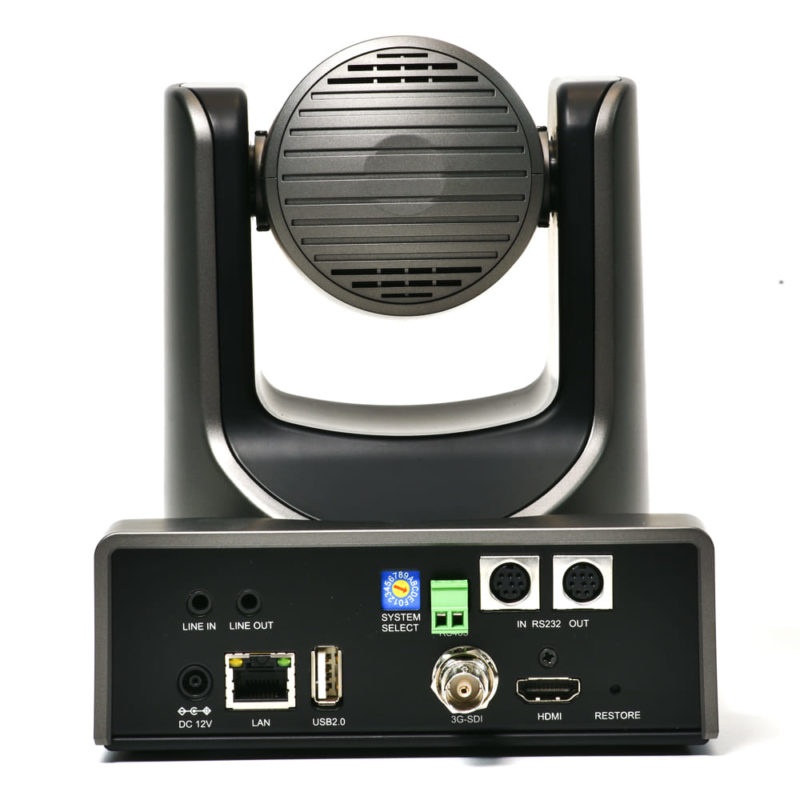

Interfaces:-

USB Interface: 1 x USB2.0,Type-A HD Output: 1x HDMI: Version 1.4b;  1x 3G-SDI: BNC , 800mVp-p,  75Ω, as per SMPTE 424M standard Network Interface: 1x RJ45: 10M/100M/1000M adaptive Ethernet Audio Interface:  1 x Line In: 3.5mm Jack; 1 x Line Out: 3.5mm Jack; Control Interface: 1 x RS485: 2pin phoenix port, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P; 1 x RS232 IN: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA / Pelco-D / Pelco-P; 1 x RS232 OUT: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA only Power Interface: JEITA type (DC IN 12V)
