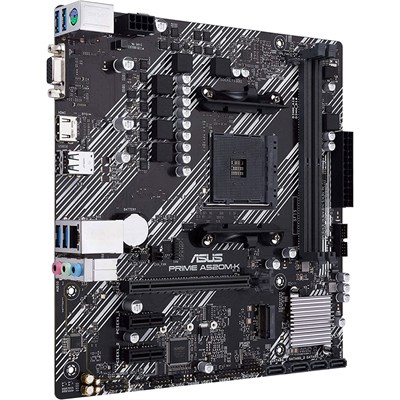

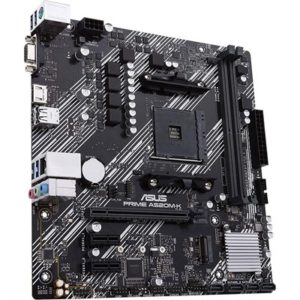

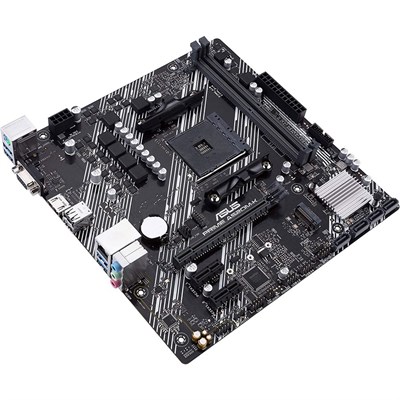

Asus Prime A520M-K AM4 Micro ATX Motherboard

  • AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Comprehensive cooling: PCH heatsink and Fan Xpert
  • Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
  • 5X Protection III: Multiple hardware safeguards for all-around system protection
Ad
Availability:

Out of stock

₨ 31,320

Out of stock

brands

CPU
Chipset
AMD A520
CPU Socket
AM4
Back Panel I/O
USB
4 x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
2 x USB-A (USB 2.0)
Thunderbolt
None
Display
1 x HDMI 2.1
1 x VGA
Audio
3 x 3.5 mm
Ethernet / Controller
1 x Realtek RTL8111H Gigabit
PS/2
1 x Combo
Memory
Memory Slots
2 x 288-Pin
Memory Support
DDR4 2133, 2400, 2666, 2800, 3000, 3200, 3333, 3466, 3600, 3733, 3866, 4000, 4400, 4600 MHz
Maximum Capacity
64 GB
Channel Architecture
Dual Channel
ECC Support
ECC (Non-ECC Mode) Unbuffered
Storage Expansion
SATA
4 x SATA III
M.2
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA (Unspecified))
U.2
None
RAID Support
RAID 0, 1, 10 (SATA)
Internal I/O
Expansion Slots
1 x PCIe 3.0 x16
2 x PCIe 3.0 x1
USB
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support
None
Air Cooling
1 x 4-Pin CPU
1 x 4-Pin System
Power Connectors
1 x 24-Pin Mainboard
1 x 8-Pin ATX
Security
TPM Module
Audio
1 x S/PDIF
Diagnostics
Clear CMOS
Legacy
1 x Serial
BIOS
ROM
256 Mb
Front Panel I/O
Front Panel I/O
AAFP, USB 3.0 / 3.1/3.2 Gen 1
Audio
Audio Codec
Realtek RTL8111H (7.1-Channel)
Software
Supported Operating Systems
Windows 10 (64-Bit)
Physical
Form Factor
Micro-ATX
Dimensions
8.90 x 8.90″ / 22.6 x 22.6 cm
Packaging Info
Package Weight
1.805 lb
Box Dimensions (LxWxH)
10.7 x 10.3 x 2.1″
