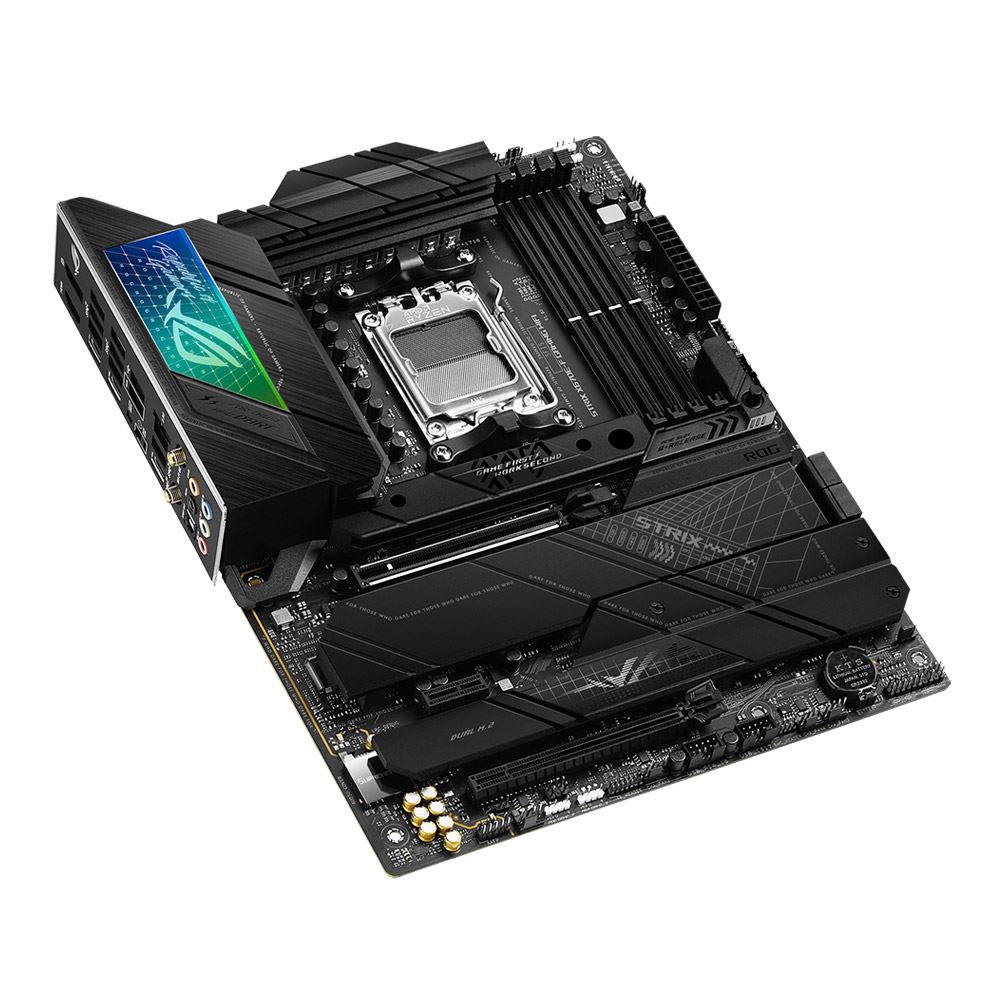

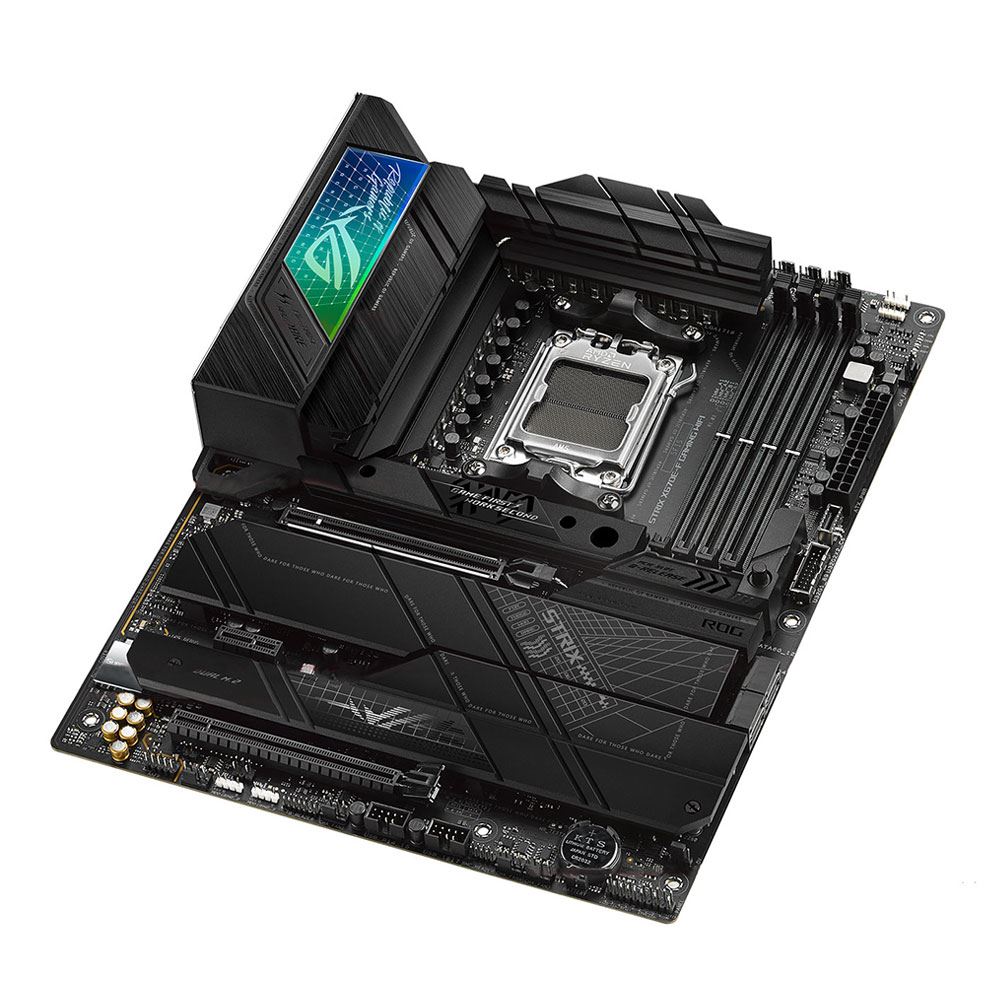

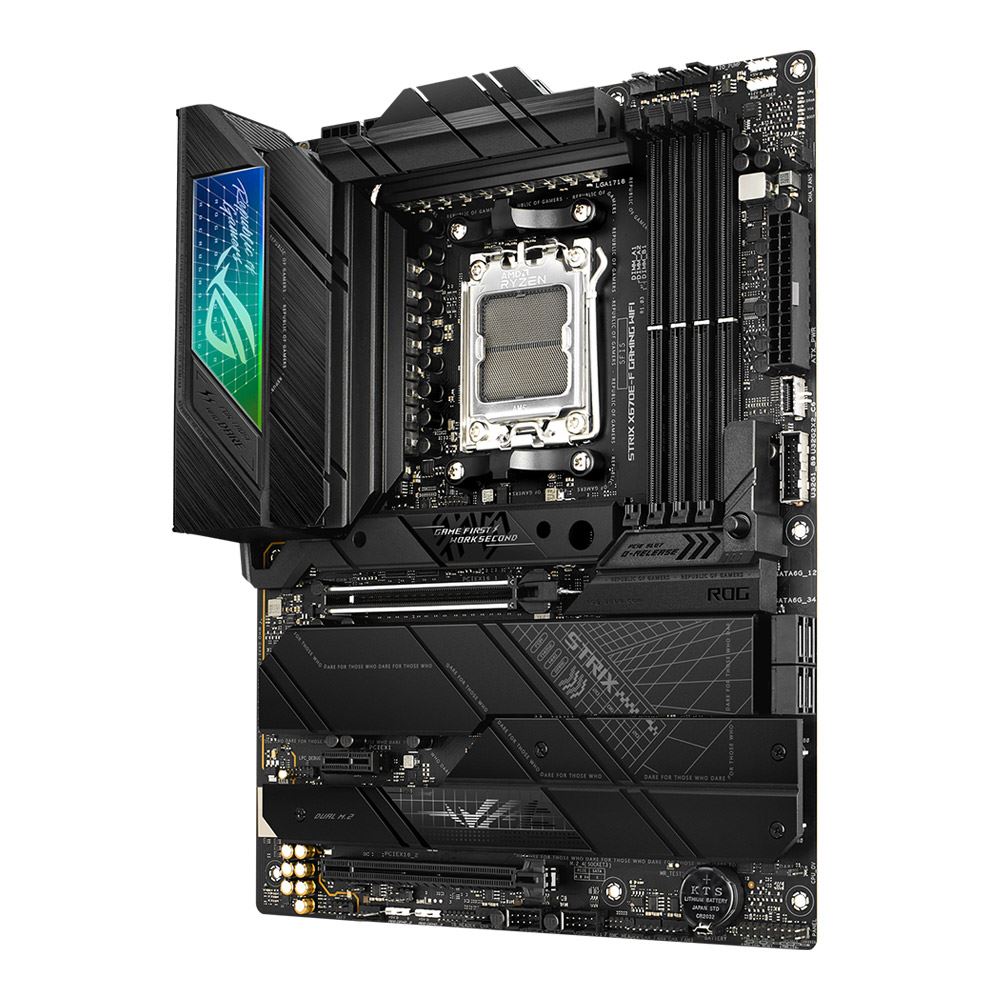

ASUS ROG STRIX X670E-F GAMING WIFI MOTHERBOARD

ASUS
Availability:

Out of stock
  • AMD Socket AM5(LGA 1718) for AMD Ryzen 7000 Series Desktop Processors.
  • 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory.
  • Optimized Thermal Design: Massive VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, L-shaped heatpipe, four on board M.2 heatsinks and one M.2 backplate for the M.2_1 slot.
  • Overclocking technologies: Dynamic OC Switcher, Ryzen Core Flex, Asynchronous Clock and PBO Enhancement.
  • Onboard WiFi 6E, Intel 2.5 Gb Ethernet and ASUS LANGuard.
  • Fastest Gaming Connectivity: PCIe 5.0, two onboard PCIe 5.0 M.2 slots, USB 3.2 Gen 2×2 front-panel connector and Thunderbolt header.
  • Industry-Leading Audio: ROG SupremeFX ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III.
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers.

₨ 147,960

Ad

Out of stock

Brand

Model
Brand ASUS
Series ROG
Model STRIX X670E-F GAMING WIFI
Part Number 90MB1BA0-M0AAY0
Supported CPU
CPU Socket Type  AM5
CPU Type Supports AMD Ryzen 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
Chipsets
Chipset  AMD X670E
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard Supports DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Maximum Memory Supported 192GB
Channel Supported  Dual Channel
ECC Supported Non-ECC
Buffer Supported Un-buffered

* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Expansion Slots
PCI Express 5.0 x16 1 x PCI Express 5.0 x16 (supports x16 mode)
PCI Express 4.0 x16 1 x PCI Express 4.0 x16 (supports x4 mode)

* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
PCI Express x1 1 x PCI Express 3.0 x1
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Onboard Audio
Audio Chipset  Realtek ALC4080
Audio Channels  ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playbackAudio Features
– Audio Shielding
– Savitech SV3H712 AMP
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
Onboard LAN
Max LAN Speed 2.5Gbps
Wireless LAN Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
* WiFi 6E 6GHz regulatory may vary between countries.
Bluetooth Bluetooth v5.2

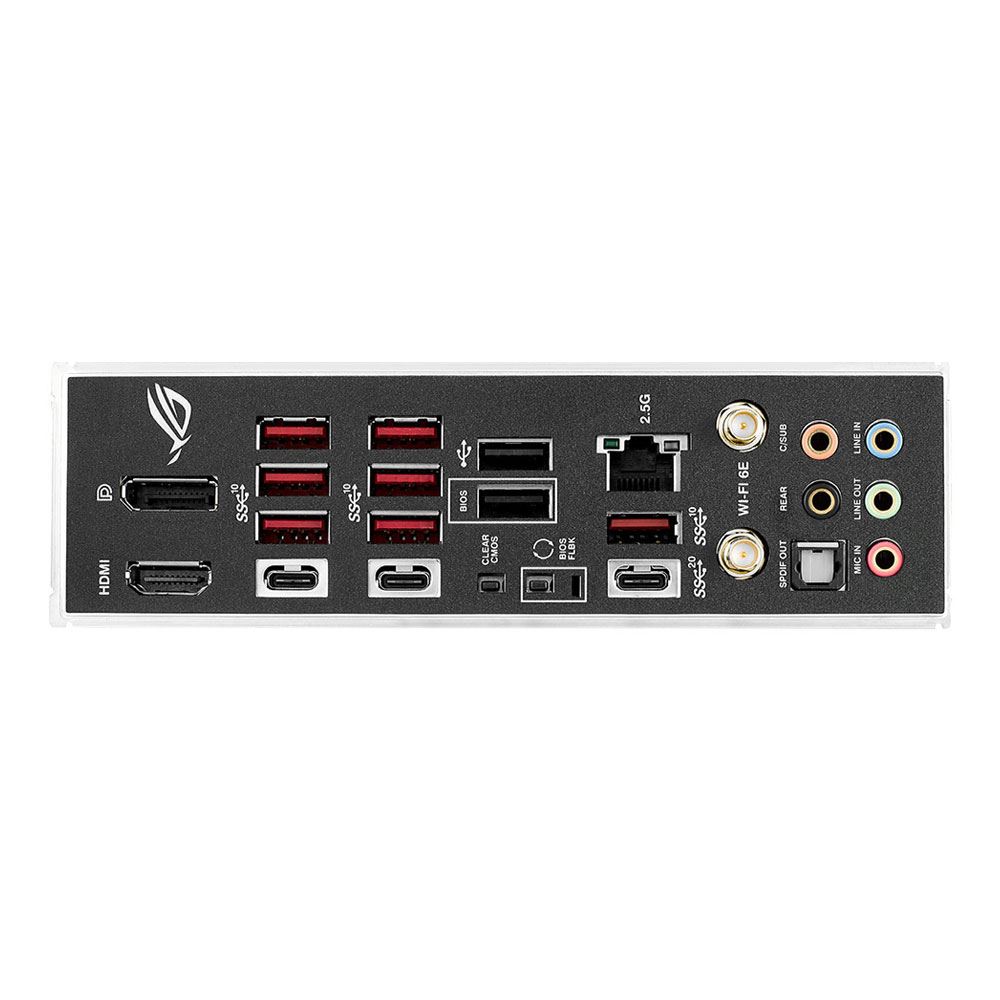

Rear Panel Ports
Back I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x Type-C)
9 x USB 3.2 Gen 2 ports (7 x Type-A, 2 x USB Type-C)
2 x USB 2.0 ports
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel I225-V 2.5Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headersStorage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt header
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Windows 11 Compatibility
Windows 11 Supported
Features
Features Extreme Engine Digi+
– 5K Black Metallic CapacitorsASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot

ASUS Thermal Solution
– M.2 heatsinks
– M.2 heatsink backplate
– VRM heatsink design

ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
– Clear CMOS button
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM

Aura Sync
– Aura RGB header
– Addressable Gen 2 headers

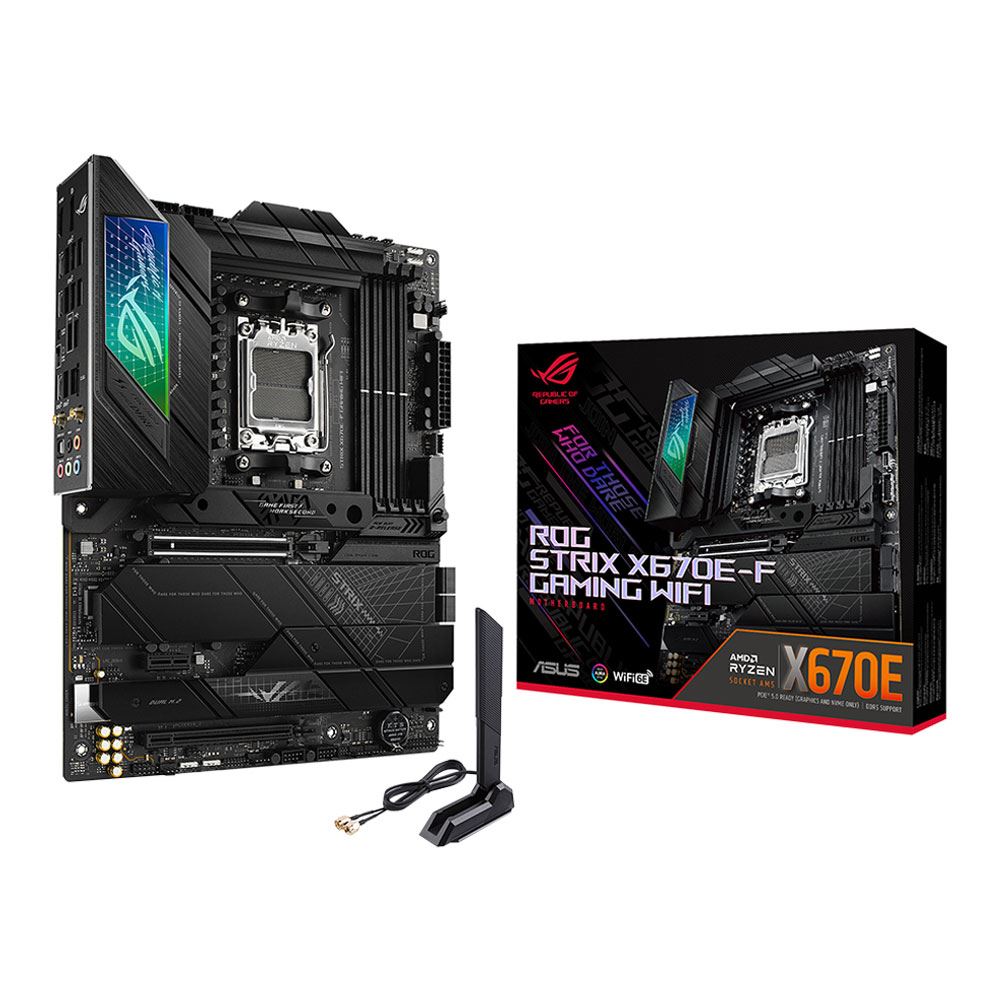

Packaging
Package Contents Cables
2 x SATA 6Gb/s cablesAdditional Cooling Kit
1 x Thermal pad for M.2

Miscellaneous

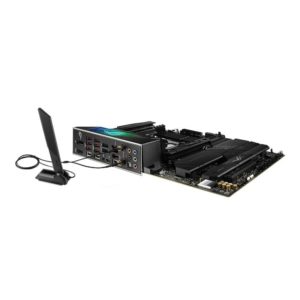

1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package for M.2 backplate
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x Rubber Packages for M.2
1 x Rubber Package for M.2 backplate

Documentation
1 x User guide
